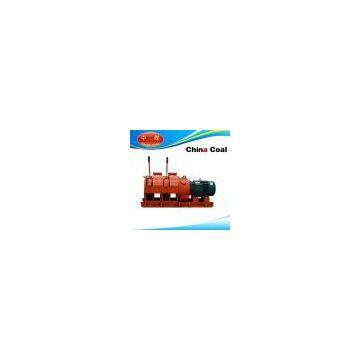

Twin Drum Scraper Winch

JPB series scraper winch is mainly used for metallic ore and other mines pit or outdoor ore handling or fill work! Mainly used for the level of the shipment, also can be used for Angle is not more than 44oof the shipment, can be used as the slope lifting equipment. The driver can winch by hand in the control.

Remark: The scraper winch can not be used as the lifting  equipments. If you want to lifting things, please choose the lifting winch, such as JD winch, JH winch, etc.

By way of the hoist is around on the wire rope drum traction for a round-trip movement to rake the material.

3. Mining scraper winch working principle:

wire rope wrapped around the drum tow the rake do reciprocating movement to transported materials.

Main Parameter

Item

Unit Model of winch

2JP-7.5

3JP-7.5 2JP-15

3JP-15 2JP-30

3JP-30 2JP-55

3JP-55 2JP-75 2JP-90 2JP-110

Volume of scraper pan 0.1 0.25 0.4 0.6 1.0 1.5 1.6

Average puling Force of working drum KN 8 14 28 50 54 62 78

Average Speed of wire rope m/s 1.0 1.1 1.2 1.2 1.3 1.3 1.3

Diameter of wire rope mm 9.3 12.5 15.5 18.5 20 23 24.5

Rope capacity of drum m 45 80 90 100 180 125 110

Electric power KW 7.5 15 30 55 75 90 110

Motor speed m/s 1440

1210 1460

1525 1470

1685 1485

2070 1480 1480 1480

Overall dimension length mm 1210 1525 1685 2070 2350 2400 2600

width mm 565 660 380 1010 1515 1515 1515

height mm 490 620 735 890 1300 1300 1300
