Home > Products > Samsung LED Module > Led Display Light Box Led Module Samsung , SMD 5630 Samsung Led Components
Led Display Light Box Led Module Samsung , SMD 5630 Samsung Led Components
- T/T L/C D/P D/A
- 7 days
You May Like
-
14.4w Blue Flexible 5050 SMD Interior Led Light Strips For Car Interior Light Accessories
-
Signage Lighting 4 LED Module SMD 5050 High Luminous Efficacy 120 Deg Viewing Angle
-
4 Led Module , Waterproof Samsung SMD5630 Injection Led Module 5 Years Warranty
-
5630 Samsung Led Module With Lens For Signage Light Boxes / Led Acrylic Light Box
-
12V Red / Green / Blue 5050 SMD Interior LED Light Strips for Home / Car Decoration
-
14.4W SMD5050 Interior LED Light Strips 60 Led Per Meter Natrual White Color
Product Details
| Brand Name | YESUN | Place of Origin | China | |
| Model Number | YS-M41S31 |
Product Description
Certification:CE/ROHS

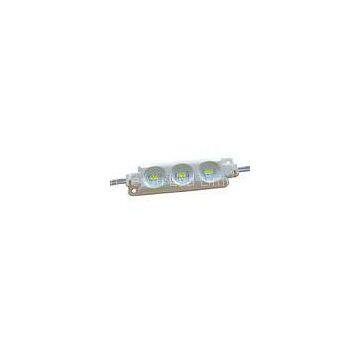

3led Samsung SMD5630 Injection module for sign box display with 5 years warranty
Specification:?
|
Model number |
YS-M41S31 |
|
Voltage |
DC12V |
|
Power |
1.2W |
|
Current |
100mA |
|
Kevin |
3000K/6000K/10000K |
|
Lumen/module |
90-120lm |
|
Viewing angle |
120 degree |
|
IP degree |
65 |
|
Size |
67*19*5.9mm |
|
Package |
5 strings per bag, 20 bags each carton, 2000PCS total |
Others:
|
Item No |
LED Color |
Standard Oty per string (PCS) |
Storage Temp???????????? (°) |
Working Temp?????????? (°) |
Material |
Max. qty in series (PCS) |
Protection Rate |
|
YS-M41S31 |
All |
20 |
–25~+60 |
–20~+50 |
ABS |
40 |
IP65 |
Profile Drawings:
Applications:
?* Suitable for 6～16cm depth signs such?as channel letters, metal letters, light boxes,decoration,etc.
Features:
1. Super high lumen Samsung SMD5630 LED,each LED can reach 35-40lm;
2. High light effective; No light decay after working 1000Hrs; With 50000Hrs lifespan.
3. Overmolded housing design with 160degree lens, nice and upscale.
4. Certification: CE,RoHs.
5. Aluminum PCB good heat dissipation.
6. Constant current circuit ensure stable quality.
7. Emitting color available: red, green, blue, yellow, pure white, warm white, cool white.
8. Waterproof rank: IP 65.
Installation:
1. 3M adhesive tape backing on modules used as an installation aid only,?permanent adhesion is done with screws;
2. Single module as a unit can be cut accordingly.
3. The maximum quantity can be connected in one row is 40pcs.
Warranty:
* 5?years warranty, 50,000 hours life span
