Home > Products > 5050 LED Module > Advertising Light Box IP65 SMD 5050 White Led Backlight Module With Wide 160 Degree Viewing Angle

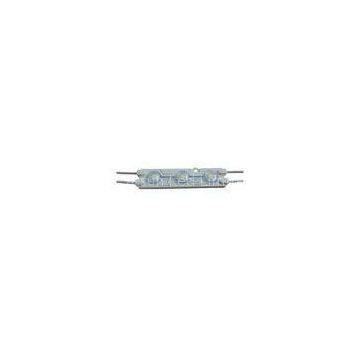

Advertising Light Box IP65 SMD 5050 White Led Backlight Module With Wide 160 Degree Viewing Angle
- T/T L/C D/P D/A
- 7 days
You May Like
-
Metal Channel Letters Outdoor Led Module , SMD 5050 RGB Led Module Waterproof
-
120 Degree Angle SMD 3528 LED Module 0.24W DC 12V With 18 - 20 lm Luminous Flux
-
IP65 3528 LED Module 3 for Exterior Led Sign Lighting / Sign Lighting Fixtures Outdoor
-
Outdoor SMD5050 LED Module for Custom Street Signs / Channel Letters Signage
-
Led Display Light Box Led Module Samsung , SMD 5630 Samsung Led Components
-
14.4w Blue Flexible 5050 SMD Interior Led Light Strips For Car Interior Light Accessories
Product Details
| Brand Name | YESUN | Place of Origin | China | |
| Model Number | YS-M51131 |
Product Description
? ?66.8*15.8*6.7mm SMD5050?Injection module YS-M51131 for led signage
Specification:?
|
Model number |
YS-M51131 |
|
Voltage |
DC12V |
|
Power |
0.72W |
|
Current |
60mA |
|
Kevin |
3000K/6000K/10000K |
|
Lumen/module |
60-70lm |
|
Viewing angle |
160 degree |
|
IP degree |
65 |
|
Size |
66.8*15.8*6.7mm |
|
Package |
20pcs per string, 5 strings per bag, 25?bags each carton, 2500PCS total |
Others:
|
Item No |
LED Color |
Standard Oty per string (PCS) |
Storage Temp???????????? (°) |
Working Temp?????????? (°) |
Material |
Max. qty in series (PCS) |
Protection Rate |
|
YS-M51131 |
All |
20 |
–25~+60 |
–20~+50 |
ABS |
40 |
IP65 |
Profile Drawings:
Applications:
?* Suitable for 6～16cm depth signs such?as channel letters, metal letters, light boxes,decoration,etc.
Features:
1. High luminous efficacy 5050 SMD LED mounted.
2. High light effective; No light decay after working 1000Hrs; With 50000Hrs lifespan.
3. Overmolded housing design with 160degree lens, nice and upscale.
4. Certification: CE,RoHs.
5. Aluminum PCB good heat dissipation.?
6. Emitting color available: red, green, blue, yellow, pure white, warm white, cool white.
7. Waterproof rank: IP 65.
Installation:
1. 3M adhesive tape backing on modules used as an installation aid only,?permanent adhesion is done with screws;
2. Single module as a unit can be cut accordingly.
3. The maximum quantity can be connected in one row is 40pcs.
Warranty:
* 5 years warranty, 50,000 hours life span
