Home > Products > 5050 LED Module > 120 Degree Angle 5050 LED Module for Shop Window Decoration 1.44W Power DC 12V Voltage
120 Degree Angle 5050 LED Module for Shop Window Decoration 1.44W Power DC 12V Voltage
- T/T L/C D/P D/A
- 7 days
You May Like
-
Waterproof 6 Pcs 2.4W 12V SMD 5730 Led Module For Led Business Signs CE ROHS
-
3 SMD 5730 Led Module For Led Light Display Sign Board Waterproof IP65 120 Degree Angle
-
Led Channel Letters SMD 5730 Led Signage Module With 130-150lm Luminous Flux
-
Super Bright SMD 5730 LED Module With Lens , Led Light Modules For Signage
-
SMD 5730 Led Injection Module 1.44w For Outdoor Signage Lighting 5 Years Warranty
-
lightbox Cree LED Module , 3000K / 6000K / 8000K 38 degree Angle 3 watt led Module
Product Details
| Brand Name | YESUN | Place of Origin | China | |
| Model Number | YS-M43161 |
Product Description

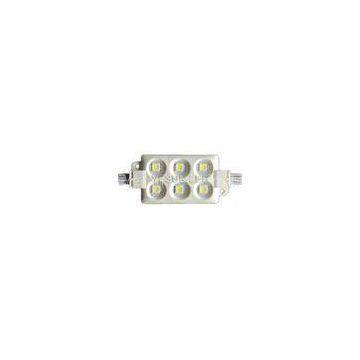

6LED SMD5050 Injection module Wide Angle 5 Year Warranty 1.44W for Shop Window Decoration
Bigger chip, 10% brighter than before. Energy saving, Environment friendly. Long life span, Suitable for channel letters and light boxes backlighting etc.
Specification:?
|
Model number |
YS-M43161 |
|
Voltage |
DC12V |
|
Power |
1.44W |
|
Current |
120-140mA |
|
Kevin |
3000K/6000K/10000K |
|
Lumen/module |
120-140lm |
|
Viewing angle |
120 degree |
|
IP degree |
65 |
|
Size |
67.8*34.5*6mm |
|
Package |
20 modules per string, 100pcs per bag, 1200PCS in total |
Others:
|
Item No |
LED Color |
Standard Oty per string (PCS) |
Storage Temp???????????? (°) |
Working Temp?????????? (°) |
Material |
Max. qty in series (PCS) |
Protection Rate |
|
YS-M43161 |
All |
20 |
–25~+60 |
–20~+50 |
ABS+FR4 |
40 |
IP65 |
Profile Drawings:
Applications:
?* Suitable for 8～16cm depth signs such?as channel letters, metal letters, light boxes,decoration,etc.
Features:
1. High luminous efficacy,with 6-LED 5050 SMD LED mounted.
2. High light effective; No light decay after working 1000Hrs; With 50000Hrs lifespan.
3. Overmolded housing design with 160degree lens, nice and upscale.
4. Certification: CE,RoHs.
5. Aluminum PCB good heat dissipation.?
6. Emitting color available: red, green, blue, yellow, pure white, warm white, cool white.
7. Waterproof rank: IP 65.
Installation:
1. 3M adhesive tape backing on modules used as an installation aid only,?permanent adhesion is done with screws;
2. Single module as a unit can be cut accordingly.
3. The maximum quantity can be connected in one row is 40pcs.
Warranty:
* 5?years warranty, 50,000 hours life span
