Product Details
| Place of Origin | China | |
| Model Number | TW-CBT300 |
Product Description

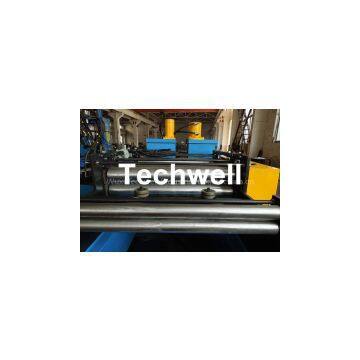

18 Groups Forming Roller Stand Steel Rack / Cable Tray Forming Machine With 2.3mm Material Thickness
Main Specification
Material Thickness:1.8-2.3mm
Total Power: 22.5KW
Dimension of Storage Rack Roll Forming Machine: about 13500mmx1200mmx1300mm
Weight of machine: about 13 Ton
Roll Diameter: 75mm
Forming Roller stand: 18 Groups
Main Axis material: First grade 45# steel, heated and quenched
Roller material: GCr15 Steel, Quenched and heated process
Forming Speed: 12-15 m/min
Working Flow
Decoiler ---- Servo Feeding --- Punching--- Levelling--- Roll Forming ---- Cutting ---- Run out table
Application
Storage rack, storage shelf, Steel rack,steel shelf, rack beam
Our Advantages
High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience
