USB Connector Industrial Computer Touchpads , Water proof Touchpad with Metal Panel
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Vandal - proof Industrial Touchpad with 2 Mouse Button and Top Panel
-
High precision USB Interface Metal Industrial Touchpad with 2 Mouse Button
-
Metal Pointing Industrial Touchpad Mouse with Rear Panel mount
-
Weather proof metal Industrial Touchpad Mouse with PS2 Interface
-
Industrial Keyboard Mouse Touchpad / USB Interface Plastic Computer Mouse
-
Anti - corrosive Stainless steel Kiosk Keyboard Rugged with dust - proof
Product Details
| Brand Name | CNKHTECH | Place of Origin | China | |
| Model Number | KH-MA80-TP |
Product Description
Certification:CE/ROHS/FCC

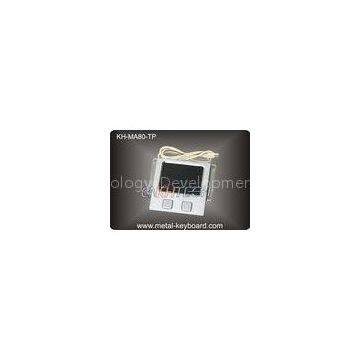

USB Connector Industrial Computer Water-proof Touchpad with Metal Panel
Product Description
? High precision pressure sensing technology of touchpad, with 2 mouse buttons designed for right & left function keys,?stainless steel panel top mounted.
? This Industrial Touchpad?specially designed for public access entry system , kiosk self - service terminal , industrial control and instrumentation type applications.
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | |
| Mechanical | Dimension: | (W x H): 80 x80 mm (Front panel) |
| Key & Front panel | 2 keys, SUS304 Brushed stainless steel material | |
| Touchpad thickness | 1.3 mm PCB thickness inclusive of mylar layer | |
| Validated Touchpad | (W x H):62 x 46 mm; | |
| Touchpad lifespan | > 10 Mio times | |
| Mounting Rack | Top stainless steel plate with mounting screw bolts | |
| Back Metal Cover | Rear side integrated electronics protected by a metal cover | |
| Interface | PS2 or USB are available | |
| Electrical | Power supply | 5V DC+ 10%, |
| Work current | 4.0 mA (normal) | |
| X/Y position sensing resolution: | 1000 points/inch (40 points/mm) | |
| X/Y position reporting: | Relative | |
| Tracking speed: | Maximum 1,016 m/sec | |
| Protection level: | IP65 (front panel) | |
| Static Release: | 15 KV (front panel) | |
| EMC Standard: | EN55022(B) | |
| Environmental | Operating temperature: | -10°C to +55°C |
| Storage temperature: | - 20°C to + 65°C | |
| Operating RH: | 10%-95% | |
| Atmospheric pressure: | 60-106Kpa | |
| Reliability | MTBF | >50000H |
| MTTR | < 30min | |
| Touchpad Lifespan | >10 million actuations | |
| OS | OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista, Linux, Win7,Unix, Mac OS9 / OSX | |
