OM4 OFNR Jacket Fiber Optic Patch Cord with MTRJ - LC Connector LAN / CATV

FOB Price

Negotiable / Kilogram

1 Kilogram(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TTI		Place of Origin	China
Model Number	MU-LC-OM4

Product Description

Delivery Time:2-3 days
Certification:ISO, SGS, ROHS

?
OM4 OFNR Jacket Optical Cord with MTRJ - LC Connector LAN / CATV
?
Description:
?
?
Fiber Patch Cords are a length of optical fiber with two ends adding connectors to connect beam path. Fiber Pigtail is a length of fiber permanently attached connector only at one end.
Optical patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc.) There are three kinds of polishing fiber end-face: PC, UPC and APC .
?
Features:
High return loss
Low insertion loss
OFNR, OFNP, LZSH or PVC jacket
CCTC A Type optical fiber Ferrule
Fan-out?available?(Ribbon?type?/?bundle?type)
Customized Lengths Upon Request
Hybrid?patch?cords?are?available?upon?request
?
Application:
LAN/CATV
Building Cabling
Network, Broadband
Telecommunication
Communication equipment rooms, FTTX
Optical appliances connection
?
Specification:
?

Multimode Fiber Optic Patch Cord?
Fiber type	OM1(62.5/125μm) ; OM2(50/125μm) ; OM3/(50/125μm-150; 50/125μm-300); OM4 (50/125μm-550)
Operating Wavelength	850 nm
Jacket material	PVC/LSZH/OFNP/OFNR
Diameter of fiber?	0.9/1.6/2.0/2.8/3.0mm
Contector?	SC LC ST FC MT MTRJ MPO E2000 or customized
polishing method	PC	UPC	APC
Insertion ?loss (IL)	≤0.2dB	≤0.2	≤0.3
Return ? loss (RL)	≥45dB	≥50dB	?≥60dB
Repetitiveness	≤0.1dB?
Exchangeability	≤0.2
Durability	>1000 times?
Operating?Temperature(oC)	-40~85
Storage?Temperature(oC)	-40~85
length	customized

?
Order Information:
?
?

Fiber?Optic?Patch?Cord
Connector? Type	Ceramic?Ferrule ?End?Face	Cable?Diameter (mm)	Simplex/Duplex	Single?mode /Multi-mode	Length (meter)
FC	PC/UPC/APC	Φ0.9,?Φ2,Φ3	Simplex/Duplex	SM/MM	Customized
SC	PC/UPC/APC	Φ0.9,?Φ2,Φ3	Simplex/Duplex	SM/MM	Customized
ST	PC/UPC	Φ0.9,?Φ2,Φ3	Simplex/Duplex	SM/MM	Customized
LC	PC/UPC	Φ0.9,?Φ2	Simplex/Duplex	SM/MM	Customized
MU	PC/UPC	Φ0.9,?Φ2	Simplex/Duplex	SM/MM	Customized
MTRJ	PC/UPC	Φ0.9,?Φ2	Duplex	SM/MM	Customized

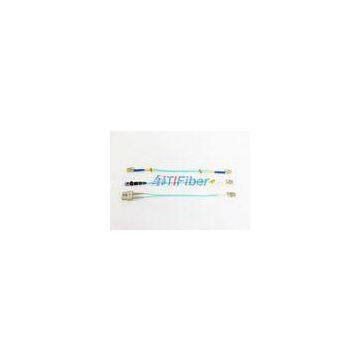

Product Picture:
?
?
