Home > Products > RF Coaxial Cable > Super Flexible RF Coaxial Cable 50 ohm CNT-400 Tinned Copper Braided Wire

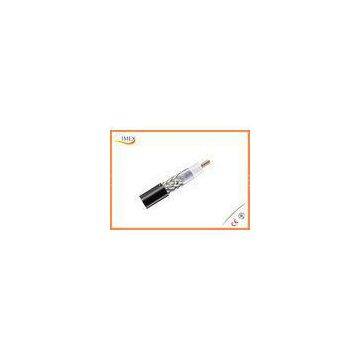

Super Flexible RF Coaxial Cable 50 ohm CNT-400 Tinned Copper Braided Wire
- T/T L/C D/P D/A
- 7 days
You May Like
-
5300 MHz Indoor Flexible RF Cable Fxl-780 For Distributed Antenna System
-
High Performance RF Indoor Ceiling Antenna for GSM / CDMA Telecommunication
-
High Performance RF Outdoor Panel Antenna for Base Station GSM / CDMA Telecommunication
-
Corrugated Copper Air Dielectric Cable Rf Coaxial Cables 50-15-3 Black PE Jacket
-
Black PE Leaky Feeder Cable , Inbuilding System / Mineral 50 Ohm Coaxial Cables
-
Low Attenuation Air Coaxial Cable Black Jacket for Radar Systems
Product Details
| Brand Name | IMEX | Place of Origin | China | |
| Model Number | CNT-400 |
Product Description
Certification:ISO9001, IEC ,UL , CE , RoHS, TLC
Super Flexible RF Coaxial Cable 50 ohm CNT-400 Tinned Copper Braided Wire
Product Description
Andrew CNT400,?50 Ohm Braided Coaxial Cable, variable, black PE jacket
Andrew CNT400 cable
1. Flexible cable MOQ 1000m
2. Jacket: pvc/pe
3. OEM and Customer's designation are welcome
1. Coaxial cable for CATV,CCTV systems.
2. Plus connector F, BNC, SMA, etc. as connection cable.
3. For Satellite Systems, HDTV, Security Camera Systems, Networking etc.
Specifications
| Mechanical and Electrical Specifications | |
| Capacitance | 78.0 pF/m | 24.0 pF/ft |
| dc Resistance, Inner Conductor | 4.690 ohms/km | 1.430 ohms/kft |
| dc Resistance, Outer Conductor | 5.610 ohms/km | 1.710 ohms/kft |
| dc Test Voltage | 2500 V |
| Maximum Frequency | 16.20 GHz |
| Operating Frequency Band | 30 – 6000 MHz |
| Peak Power | 16.0 kW |
| Shielding Effectiveness | >90 dB |
| Velocity | 85% |
| Bending Moment | 0.7 Nm?| 0.5 ft lb |
| Minimum Bend Radius, Single Bend | 25.40 mm | 1.00 in |
| Tensile Strength | 73 kg | 160 lb |
| Installation Temperature | 40?°C to +85 °C |
| Storage Temperature | 70?°C to +85 °C |
Packaging & Shipping
IMEX foamed polyethylene dielectric coaxial cables are packed in carton or coiled on wooden reel, and carton & wooden reel are not returnable.
If the cable is ordered together with connector, the connector is assembled at the end of the cable. During transportation, available transportation tool should be handled carefully to avoid damaging the package.
Our services
1. We Design, offer outline drawing and sample.
2. We could offer fast delivery As we are real factory.
3. Customer service will follow up the process of order, and prepare the shipping and custom clearance ? ? ? ? documents, they will follow up the order until you receive it.
4. Quality Guarantee: we could guarantee our quality in one year, if it is not man-made problems,we could ? ? repair or replace it for you.
