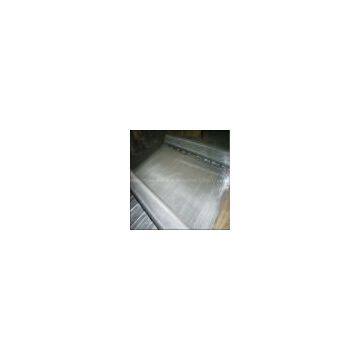

stainless steel wire mesh

Brand Name	AN PING YUAN ZHI		Place of Origin	China
Model Number	stainless steel wire mesh

Applications:
features: excellent resistance against acid ,alkali, heat and corrosion .
      Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.
Specifications:
1_ mesh :2mesh/inch-500mesh/inch General
2_ Raw Material: SUS302,304,316,304L,316L stainless steel wire
3_ Stainless Steel Square Wire Mesh Varieties according to materials: Stainless steel square wire mesh type 304 Stainless steel square wire mesh type 304L Stainless steel square wire mesh type 316 Stainless steel square wire mesh type 316L
4_ Sizes: Width:0.9144m,1m,1.22m,1.524m and 2m. Length:15.24m,30m,30.48m,45m and 50m
5_ Weaving pattern and character : 1. plain weave :Plain weave is the most  commonly  used weave. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
      2. twill weave: Twill Weave Stainless Steel Wire Mesh is made by each weft wire passing alternately over two, and then under two successive warp wires and each warp wire passing alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.
      3. bamboo type weave
