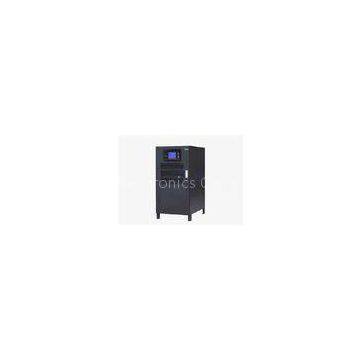

10KVA / 15KVA Three Phase Online Uninterruptible Power Supply Online Double Conversion UPS

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China
Model Number	HT33 Series Online UPS 380VCA

Product Description

Delivery Time:2 weeks
Certification:ISO 9001,CE

Three-Phase?Input?And?Output?Load?Protection Online?UPS Double?Conversion

Quick Detail:

Digital control of rectification Input power factor: 0.99 input harmonic current: <3% overall efficiency: >95% Online power supply three-phase input and output double conversion support 380/400/415V,50/60Hz power grid excellent performance of power supply and load protection

Specifications:

Model	HT33 010S	HT33 015S	HT33 020S	HT33 030S	HT33 010	HT33 015	HT33 020	HT33 030
Capacity (KVA)	10	15	20	30	10	15	20	30
Main Input
Input voltage	380V/400V/415V(line to line), 50/60Hz
Input connection	3Ph+N+PE
Power factor	>0.99
Input voltage window	+25%~-20%, full load
-20%~-40%, power derating between 100% to 70%
Frequency window	40-70HZ
Bypass input
Bypass voltage	380V/400V/415V
Bypass voltage window	+15%--20%, full load
Frequency window	±5Hz
Battery
Battery voltage	±240VDC
Charger power	20%*Power
Charger voltage precision	1%
Output
Voltage precision	1% (balance load),1.5% (unbalance load)
Output voltage transient	5%(0~100% load step)
Voltage THD (Total Harmonic Distortion)	THD<1%(linear load),THD<5%(nonlinear load)
Power factor	0.8
Frequency tracking range	50/60Hz±3Hz, adjustable
Frequency precision ?(free running)	±0.02%
Phase tolerance	120°±0.5° (balance and unalance load)
Voltage unbalance degree (100% unbalance load)	±1%
Frequency tracking speed	0.5Hz/s to 5Hz/s, adjustable
Crest factor	3:1
Overload capabiltiy	102% long time operation
110%, transfer to bypass after 1hour
125%, transfer to bypass after 10 minutes
150%, transfer to bypass after 1 minute
>150%, transfer to bypass after 200ms
Bypass overload capability	125%, long time operation
125%< load <130%, last for more than 1 hour
130%<load<150%,last for more than 6 minutes
>1000%, last for more than 100ms
System
System efficiency	Normal mode: 95%
ECO mode: 99%
Battery mode efficiency	95%
Battery configuration	12V, 40PCS (36~44pcs acceptable)
Display	LCD+LED, keyboard
EMI	IEC62040-2
EMS	IEC61000-4-2(ESD)
IEC61000-4-3(RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
Insulation resistance	>2M
