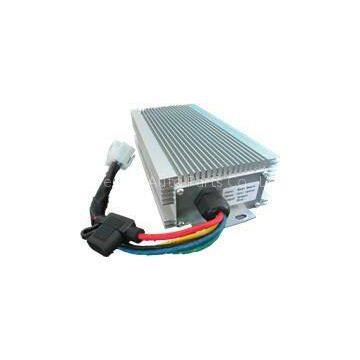

360W 72V to 24V Isolated DC to DC converter for Golf Cart

360W 72V to 24V Isolated DC to DC converter for Golf Cart

Input voltage: 72V
Input voltage range: 54V~90V
Output voltage: 24V
Output current: 1520A
Output power:360W
Size: 180*46*92mm

Application scope

This product is used for DC voltage conversion equipment, suitable for various applications to DC power supply voltage conversion occasions, especially various kinds of electric vehicles, such as electric forklift, golf cart, tourist car, it can also be applied to DC power's voltage conversion for solar or wind energy. The converter can provide a voltage output of 12V or 24V.

Advantages

The circuit designed carefully, to ensure the system efficiency and reliable operation;

Synchronous rectifier, the conversion efficiency is more than 90%, better than other similar products;

Power / cooling reserves can work for a long time in rated current;

Special aluminum shell, is conducive to heat dissipation, small volume, convenient installation;

Wide input voltage, deviation of + 20%, suitable for battery application (unit voltage 1.65V~2.5V);

The output voltage adjustment rate is below 1.5%, which can prevent damage to the battery  or  the equipment;

This product has internal Overcurrent protection, short-circuit protection circuit protection;

Widely applicable to all kinds of environments, protection level IP55;

Maintenance warranty

Should be installed in space with good cooling conditions, long time and heavy load applications must ensure the converter bottom good contact with other metal surface, in order to get good heat conduction;

Converter wiring, should pay attention to positive and negative power not reverse;

Should pay attention to eliminate the short / long time overload fault in the trial process, short-circuit / overload can damage the equipment;

Should  timely remove sundries sucha as dust etc. on the surface of equipment which effect the heat dissipation.

Warranty period: 12 months

Note: the product is not under warranty:

A converter housing serious deformation or self - off;

Damaged converter wiring errors, including input / output power is negative or reversed;

Other vandalized damage
