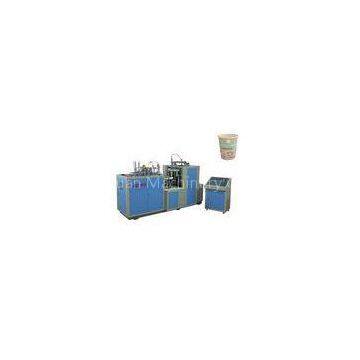

Printed Cutting 50ML Coffee Automatic Paper Cup Machine / Paper Cup Maker Machine

Printed Cutting 50ML Coffee Automatic Paper Cup Machine / Paper Cup Maker Machine

JBZ-A12 Main Technical Data:

1. Paper Cup Sizes: 3,4,5,6.5,8,9,10.5,12 OZ or other sizes

2. Row material: Single side(one side) PE(polyethylene) film coated paper

3. Suitable paper weight: 150--280 gsm

4. Speed of making paper cups: 45--55 pcs per minute

5. Limit of temperature control: 0--400 Centigrade

6. Total power: 4.8 KW

7. Power source: 380 V,220V 50 Hz,60 Hz or other Customer needed

8. Whole machine weight: 1500 kg

9. Appearance size(L x W x H): 2650 * 1300 * 1700 mm

10. Note: We can make the paper cup machine suitable for your requirement.

Specification:

Features

1. The main part includes ultrasonic sealing system, index, speed reducer, motor, knurling set, bottom heating set and inverter.

2. Double side PE coated paper cup machine owns photoelectric detection, fault alarm and counting functions.

3. This paper cup making machinery features simple operation, stable performance, small occupying area, high efficiency and more profit. It has become the best choice for customers’ investment.

4. Double side PE coated paper cup machine should be cleaned and lubricated regularly.

5. We use wooden cases to package this paper cup making machinery, which is convenient for sea transportation.

Applications

Paper cups produced by JBZ-H12 single PE coated paper cup machine can be used for tea, coffee, milk, ice cream, juice and water. It is an economical and classical paper cup forming machine suitable for making cups with 2.5 to 12 oz. If customers require bigger cups, our model JBZ-H16 or JBZ-S22 will be your best choice.

1.?PE Coating : Use PE-Coating Machine Coating PE film on raw white paper; Coating one side name Single Side PE Coated Paper; Coating two sides name Double Sides PE Coated Paper

2.?Slitting : Use Slitter slitting PE Coated Rolling Paper to [ sheet paper(make cup body) ] and [ cup-bottom rolling paper ].

3.?Printing : Use Printing Machine printing all kinds of design on the sheet paper

4.?Die Cutting : Use Die Cutting Machine cut the Pre-printed sheet paper to cup-fan-wall body

5.?Forming Paper Cups : Use Paper Cup Forming Machine or Paper Bowl Forming Machine auto make paper cups,paper bowls. One worker is enough for forming machine, only need operator put the cup-fan-wall body to the entrance and the rolling-bottom to the bottom entrance, and then take the finished cups out.

6.?Packaging : Pack the finished paper cups in plastic bags ,and then bags to cardboard box.

FAQ:

Q1: What's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer FOB Ningbo price .but we also accept other way like L/C , western union ,and do CFR&CIF etc.

Q2. Where I can get the raw material?
solution1: buy printed and cutted paper cup fan from us
solution2: find the factory in your area to print and cut for you
solution3: buy the flexo printing machine and die cutting machine to print and cut by yourself .
if you are new in this field ,i suggest you'd better to adopt solution 1 or 2 when you are in first stage.

Q3. Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one worker ,what you do is just learn some basic thing like wet the paper cup fan , lubricating the moving parts regularly .And we will sent you video ,we suggest you to come to visit our factory to learn more thing by yourself for free , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 24 hrs .Our engineer also can be distributed to overseas as you required.

Q4. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you
