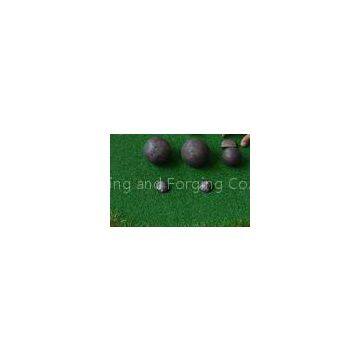

B3 Material Grinding Resistant Grinding Balls for mining industry dia 25mm - 150mm

B3 material Grinding Resistant dia 25mm-150mm Grinding Balls for mining industry?

Breif Description:
Size: 20-150mm Inspection: SGS/BV/TUV
Origin: Shandong Province, China

Feature:

1) High Hardness: The surface hardness of forged and rolling balls is to 60-65 HRC and volume hardness is to 60-63 HRC

2) High Impact Toughness: The impact toughness is more than 12 J/cm2;

3) Low Broken Rate: The actual broken rate is not higher than 1%;

4) Even Wear-resistance: The loss of ball round rate is 50-300 g/ton.

The production process of the forged grinding balls
1). Raw material:
All the material is qualified with certificate and made in the Chinese largest steel production enterprise.
2). Different steel specifications ccording to the clients's requirements.
Main Steel Material :C45 Steel;60Mn Steel;B2 Steel
3). Steel Cutting:
the steel bars should be cut into small pieces according to the size of steel balls required by the order.
4). Heating:
we use the electric furnace instead of the traditional coal stove, the biggest advantage is that all the steel bars can accept the most approriate temperature during the heating progress. It affect the hardness and toughness directly.
5). Hammer forging:
The raw material is forged to a certain deformation by the air hammer, when the compression ratio increased, the micro-structure become more compact so that the hardness and the toughness can be improved.
6). Heat treatment:
Both the water quenching heat treatment production line and our own temperature control technics are important.
We have mature production technicians responsible for the heat treatment process as we know this process affect the grinding balls performance directly.
7). Quality Control.
Raw material test before production
Hardness test Drop Test Impact Test Core pulling Test after production
SGS test before delivery
Certificate: ISO 9001:2008

Competitive advantage:

1.Top high cost performance;

2.Save annual steel ball use qty;

3. Increase outlet derived from the best quality .

Performance comparation:
