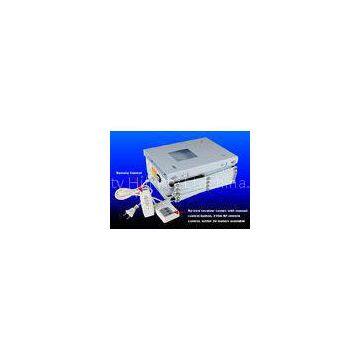

Huge Loading Capacity Projector Ceiling Wall Mount For Led Video Projectors Low Noise

FOB Price

US$ $95.00 - $120. / Kilogram

1 Kilogram(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	XY		Place of Origin	China
Model Number	PL-10

Product Description

Delivery Time:Sample for 1~2 working days, bulk order quantity for 6 ~8 working days
Certification:CE / FCC / RoHS

Low Price Drop Down Remote Control Scissor Roof Bracket 100cm Working Quiet For DLP LCD LED 3D Projector
?
The Projector Scissor lift mechanism that come with remote control is the market leading projector lift for home cinema installations. Superbly height efficient and functional with a range of drop options, the Projector Scissor Mechanism is recommended by leading Audio Visual Companies around the world. Coming in couple standard sizes to fit the vast majority of home cinema projectors, it is the perfect way to transform any living space into a home cinema.
?
Item Features:

Super Thin Structure

Designed with high strength steel, we refined the simplest structure. With 1 meter range for example, the minimum installation height is just 160mm.

Heavy-Duty Belt with Fireproof

Equipped with heavy-duty motor and fireproof belt, the operation of the lift is smooth and easy.

Cable Management

All sorts of cables are well managed along with the scissor which ensure the smooth operation of the lift.

Universal Installation Panel

Equipped with universal panel for different types of projectors.

Adaptable height for various types of projectors

By adjusting the height of the screw bar, the suitable height for projector is flexible up to 200m, thicker than this can be achieved with extended screw bars.

Replaceable Ceiling Decoration

The ceiling decoration board can be easily replaced to match different installations when needed.

Smooth Working Way

Low noise similar as quiet working, less than 25db

Come With Convenient Acessories

The remote control can work within 50 meters, with the universal ceiling bracket , you can install your projector once you get the lift in hands.
?

Special Detail:
1: Designed for total concealment of projector
2: Positive mechanical lift/drop limits
3: Dimension: 35x30x16cm
4: Bottom plate dimension: 50x50/ 60x60cm / 80x80cm (optional)
5: Huge loading capacity: 10 kg
6: Adjustable rod length: 30cm x 4 pcs
7: Working distance: 100 cm
8: Strong motor , more professional and stable
9: Univeral ceiling bracket height: 25 cm
10: Integrates with most control systems: IR remote control and manual control button
11: Space for cable management and projector mounting bracket must be considered when ordering
12: Projector lift minimum height when closed (fold): 16 cm + projector thickness
13: Custom sizes are available
?
Specifications

Working Distance	?100cm (3.28ft)
Loading Weight	?10kg (22lbs)
Decibel Rating	?≤ 25dB
Decorative Panel	?Standard 50x50cm , Optional 60x60cm , 80x80cm
Power Supply	?110~120V or 220~240V / 50~60Hz
Remote Control	?IR Remote
Color	?White
Dimension	35cm x 30cm x 16cm
Quality Proved	CE / FCC
Gross Weight	17kg (37.5lbs)
Warranty	12 months

Installation process:

1) Confirm the installation location of the lift based on the screen size and projector focal, then make a ceilings hole (47 cm × 47cm). (This size is only for suggestion, you can adjust if you have special requirement) ;

2) Confirm the mounting holes based on decorative plate size . With the four pieces M8 × 12 screws explosion, to set down the hanger mounting plate ;

3) Put the projector lift into the mounting plate, and use four pieces M6 × 12 screws to tighten ;

4) Adjust the limit switch, to achieve accurate positioning within the travel range ;

5) Install decorative floor, adjust the screw to make decorative plate parallel to the ceiling ;

6) Installation universal head, fixed projector ;

7) Strictly in accordance with traces schematic wiring to prevent pinch-off.

Package List:

1: Projector lift x 1 unit

2: Rod connection x 4 units

3: Screws x 1 bag

4: IR remote control x 1 unit

5: Power Cord x 1 piece

6: Global ceiling mount x 1 piece

We send items to oversea all over the world by air (China Post Air Mail/DHL/ UPS/ FedEx/ EMS) and by sea, if you have any special service, please contact us freely at any time. We will reply you back in 24 working hours.

?
?
1: About Shipping
?
1) Package will be shipped within 3 working days after payment is confirmed, bulk orders maybe delayed more days.
2) Please double check your shipping address, including Postal Code, Phone Number. If there is any change, please let us know before making the payment.
3) We will not be responsible for any delay during
