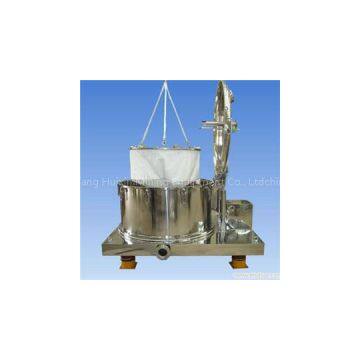

Punching Bag Centrifuge

Place of Origin	China

Introduction to SD shirt punching bag centrifugeSD shirt punching bag centrifuge is an improved product based on SS three-legged type upper discharging centrifuge. In addition to remaining advantages of SS type centrifuge,Website: , the SD type has other advantages like reducing labor intensity, quick unloading, easily cleaning filter bag, lower pollution, high production efficiency. SD type is suitable for separating suspension liquid which is proper particle, uneasy to compress, needing washing, small viscosity. It is widely used in chemical industry, pharmaceutical industry, food industry, light industry, mining industry, environment protection, etc. The SD type accords with the requirements of GMP design.The motor drives the barrate to rotate at a high speed, and the materials are feed into the barrate via feeding tube. Under centrifugal force of the machine, liquid phase is discharged through filter cloth filter hole.Solid phase was intercepted in the barrate. After downtime, open the machine cover, loosen the block liquid plate,tightly lock the pin. Next the lifting device will hang the block liquid plate and filter-bag to discharging place, then the lifting device loosens its hanging claw, the filter-bag will open, meanwhile the filter cake will fall nical parameters of SD shirt punching bag centrifugeprojectSD-800SD-1000SD-1200SD-1250SD-1500Barrate?diameter?mm8001000120012501500?working capacity ? ? ?L90140250320410revolving speed ? ? ?r/min15001000/1200900900750Maximum separation?factor1007560/808600560510Max Loading? ? ? ?Kg?150200320420600motor power? ? ? ?kw5.5/7.57.5/1111/151518.5/22machine weight ? ? ?kg18002100280030005000external ? ? ?dimension ? ? ?L×W×H1750×1400×12001950×1650×13002600×1850×14502650×1850×14502700×2150×1600
