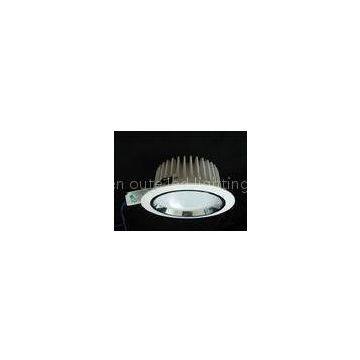

3W 180LM 2.5inch Dimmable LED Downlight 80 CRI Recessed LED Downlight
- T/T L/C D/P D/A
- 7 days
You May Like
-
5W 80 CRI dimmable led downlight , Aluminum heat sink LED Down Light
-
9W die-casting Aluminum dimmable led downlight 4inch white cutout:110MM
-
indoor recessed dimmable led downlight 7W Warm White 100MM
-
30W Dimmable LED Downlight COB led big watt led down light high brightness
-
32W 1920lm Dimmable LED Downlight For Cinema Lighting No Flash
-
30W 80 CRI Dimmable LED Downlight Cold White 6000K Round COB LED Down Light
Product Details
Brand Name | OUTE | Place of Origin | China | |
Model Number | OT503-2.5\" |
Product Description
Certification:CE&rohs
die-casting Aluminum Dimmable LED Downlight 3W 2.5inch white
?
Quick Detail:
?
1. Competitve price .
2. High cost performance
3. Input voltage:100-240V AC
4. Triac dimmable optional
5.? 2.5\"?? heat sink body
6.? Cutout diameter: 75MM
7. Three years or Two years warranty
8. China Factroy
?
?
Description:
?
Led down light is one kind of very popular indoor led lamps. It own the basic strengths of led lamps: Energy-saving ,long lifespan ,without? Lead ,without? Mercury and without? Ultraviolet? etc.? strengths.
?
And the SMD led components emit light through diffuser plate ,it make light soft and even.?
?
And regarding the key components led components and key part led drivers, The high-class quality suppliers help us to guarantee the quality.
?
About heat sink body, the ADC12 Aluminum alloy heat sink body offer enough thermal dissipation support for the led components.
?
And over three years cooperation with USA,Spain,Italy,Netherlands,France, Czech,Russia,South-eastern Asia, India customers on led down lights products.
The quality is stable and the cost performance is competitive.
?
?
Applications:? Mall,Shop, Hall ,Supermarket ,Cinema, Office ,Museum ,Gym etc. Indoor environment
?
The led downlight are widely used in many kinds of indoor led lighting projects.
?
?
Specifications :
?
Model: |
OT503-2.5\" |
CRI(Ra): |
65-75Ra or 75-85Ra |
|
Size(MM): |
Cutout diamter:75MM |
Luminous Flux (LM): |
180LM |
|
Installing way: |
Recessed |
Triac dimmable |
Optional |
|
Led driver protection circuit: |
over-load over-current over-voltage short-circuit |
External led driver: |
Isolated |
|
Heat sink material: |
ADC12 Aluminum alloy |
Warranty: |
Three years??????? or Two years |
|
Input voltage: |
100-240V AC |
CE & Rohs compliant: |
Optional |
|
Led type/qty: |
6?pcs of SMD5630 |
Color of the heat sink body: |
White |
|
Power: |
3W |
Power factor: |
>0.9 |
?
?
Competitive advantages:
?
1. stable quality for three years production experience
2. competitive cost-performance
3. the key led components packaged by high-class supplier in China.
4. The Led driver is over-load over-current and short-circuit protection designing .
5. The heat sink body is ADC12 Aluminum alloy and Aluminum is over 82%--it’s better for thermal dissipation .
6. delivery on time & good after-sales service.
