Vertical Concrete Jacking Pipes Making Machine

Feature:

1.High-mechanization, automatic production, high-efficiency, low labor costs

2 Yield not restricted by model

3 High product precision

4 Use dry concrete, binding material use less, low costs

5 Molding by high frequency vibration, concrete have no layered separation effect, good uniformity

6 Instant demoulding after moulding, each diameter pipe just need one set of mould, less mold number and mould cost

7 Steam curing use the natural or low temperature(30 40°C) method, save energy

8 Can produce reinforced concrete pipe with base or non-circular

9 Can produce anti-corrosion plastic pipe embedded lining of concrete pipe, process simple

10 Less process, less accessory equipment

11 No slurry and waste water, less Industrial wast.

Workng principle

The vibrator that embedded in the internal model can generate high frequency vibration force by high-speed rotation ,affect to the vibrating ring through the internal model,the trasfer to the externl mold ,the vibration force of internal and external mold makes the concrete molding compaction ,then forming the perfect concrete pipe??

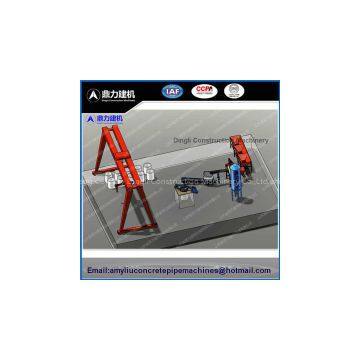

The concrete pipe production line with the vertical vibration process

the picture of vertical vibration type concrete pipe making machine:
