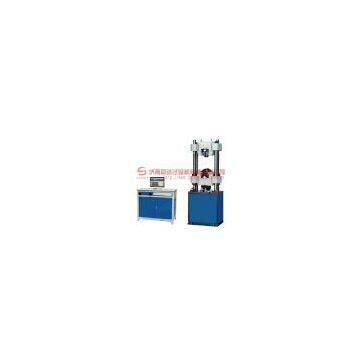

Servo Hydraulic Universal Testing Machine

Brand Name	Chenda		Place of Origin	China
Model Number	WAW

MAIN APPLICATION WAW Series machine, compared with a ball screw type electric mechanical UTM, is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. Therefore it is very suitable for making test to different metal and nonmetal materials under high toughness and hardness against extreme big loading force. By using oil pressure transducer and photoelectric encoder, the computer is timely collecting the testing parameter like loading force, stroke etc. The servo system will provide on line close loop control and constant parameters control. The test software is able to create customized testing methods and setup testing report in only a few steps. WAW series is widely used in different inspection department, engineering area, universities and institutes. Features Full computer controlled of testing process. Adopt oil-hydraulic automatic clamps which can be operated from separate control box Wedge tension jaw processed by advanced technology; increase the stiffness of crosshead under high load and high intensity test. Powerful multifunctional control software will provide more testing methods to meet ASTM, ISO and other testing standards. Report guide will create your testing report in only three steps. Programmable testing software makes LCF testing or cyclic testing become available. Overload protection will secure operators. WAW-100B WAW-300B WAW-600B WAW-1000B Technical Specification: Mode WAW-100B WAW-300B WAW-600B WAW-1000B capacity 100 300 600 1000 Accuracy Class 1/0.5 Load measurement accuracy Within ±1% ±0.5% Load measurement range 2%-100FS or (1%-100FS) Deformation accuracy ±1% Max tensile space(mm) 550 550 600 600 Max compression space(mm) ≥500 Ways of clamping Manual and automatic Round specimen diameter(mm) Φ6-Φ26 Φ6-Φ26 Φ13-Φ40 Φ13-Φ40 Flat specimen thickness(mm) 0-15 0-15 0-30 0-30 Shear specimen diameter(mm) 10 Compression platen (mm) Φ160 Maximum distance between The bending point Optional Motor power Supply 1.5KW Crosshead power Supply 0.5KW Deformation measuring device Extensometer Safety devices Software and machinery protection Net weight(Kg) 1900 2100 2600 3500
