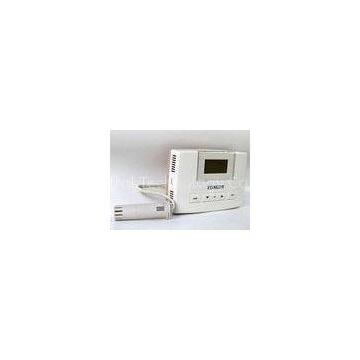

Greenhouse Temperature Controller / Temperature Sensor With Display

Power supply

230VAC/110VAC/24VAC? selectable in the order

Output

One or two Max. 5A relay/each for the On/Off output

Displaying

LCD

External sensor connection

Typical 2m, 4m/6m/8m selectable

Net weight

280g

Dimensions

120mm(L)×90mm(W)×32mm(H)

Mounting standard

Wall mounting in the wire box of 2”×4” or 65mm×65mm

Sensor spec.

Temperature

Humidity

Accuracy

±0.5℃ (20℃~40℃)

±4.0% RH (20%-80%RH), 25℃

Measuring range

0℃~60℃

0~100%RH

Display resolution

0.1℃

0.1%RH

Stability

<0.04℃/year

<0.5%RH/year

Storage environment

10℃-50℃, 10%~70%RH

Product Name

Model

Description

Humidity Controller

Power supply:

-(A)/(B)/(C)

A: 230VAC?

B: 110VAC

C: 24 VAC

F2000P-TH-K01-a-(A)/(B)/(C)

Detect and display RH&Temp. 1XON/OFF relay output to control a humidifier or dehumidifier. The max. current is 5A.

F2000P-TH-K02-a-(A)/(B)/(C)

Detect and display RH&Temp. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device.

The max. current is 5A.

F2000P-TH-K01-WT-(A)/(B)/(C)

Detect and display RH&Temp. with the external sensor. 1XON/OFF relay output to control a humidifier or dehumidifier.

F2000P-TH-K02-WT-(A)/(B)/(C)

Detect and display RH&Temp. with the external sensor. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device.

F2000P-TH-K01-TSM-(A)/(B)/(C)

Detect and display RH&Temp. with an external sensor box. 1XON/OFF relay output to control a humidifier or dehumidifier.

F2000P-TH-K02-TSM-(A)/(B)/(C)

Detect and display RH&Temp. with an external sensor box.

2X ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device.

Humidity Controller

With Modbus

F2000PC-TH-K01-(A)/(B)/(C)

Detect and display RH&Temp. 1XON/OFF relay output to control a humidifier or dehumidifier. Modbus interface

F2000PC-TH-K02-(A)/(B)/(C)

Detect and display RH&Temp. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heatin
