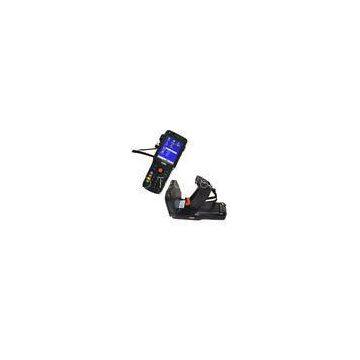

Capacitive GPS Handheld RFID Reader With 2D Barcode Laser Scanner
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Industrial Black Wirelss Handheld RFID Reader For File Tracking
-
Long Range UHF RFID Reader , RFID Handheld Reader With Touch Screen
-
3G Handheld RFID Reader Maximum 30dbm Support Handwriting Input
-
Portable Handheld RFID Reader With WCDMA 1D Barcode Laser Scanner
-
Long Distance UHF Handheld RFID Reader Lightweight Capacitive
-
USB Mobile RFID Reader , Bluetooth UHF RFID Reader With DEMO Software
Product Details
| Brand Name | ZKHY | Place of Origin | China | |
| Model Number | ZK-RFID188A |
Product Description
GPS Handheld RFID reader with WCDMA, WiFi, 1D barcode, bluetooth
Competitive Advantages:
?Read range up to 4.5m. ?Windows CE6.0 OS. ?Impinj R2000 chip. ?Built-in 1D or 2D barcode laser scanner, capacitive touch screen. ?IP64 Waterproof, 1.5m drop test, can work under harsh environment.Description:
??? ZK-RFID188A is a handheld terminal. It has IP64 waterproof grade, with Windows CE 6.0 OS, can be built-in with 1D or 2D barcode laser scanner. Communication interfaces are RS232/USB, Bluetooth, WiFi. Free SDK and Demo will be provided.
Specifications:
| Screen | 3.5in QVGA(240*320pixel ) |
| Operation System | Windows CE 6.0 |
| Processor | SAMSUNG Cortex-A8 1GHz CPU |
| Memo | ROM 512MB,RAM 4GB, Micro SD/TF maximum 32GB |
| Module | Support Wi-Fi/3G/1-D barcode/Bluetooth |
| Read range | 4.5 meters |
| Reading speed | 20ms/tag |
| Protection Grade | IP64 except display |
| Working Frequency | 865-868Mhz,902-928Mhz |
| Output power | Maximum 30dbm(adjustable) |
| Keyboard function | 32 keys. Mixed alphabetic and numeric key, arrow key, scan key, function key, side key, support handwriting input |
| Standard battery | 3.8V,4500mAh Li-ion Rechargeable Battery (working for 5-12hours) |
| Support RFID Protocol | EPC Gen2(ISO18000-6C), ISO18000-6B |
| Item size | 192mmx73.8mmx30mm |
| Net weight | 385g |
* Effective distance depends on protocol, antenna, tag and environment.
Applications:
Check in/out, garment management, retail store management, cattle management
