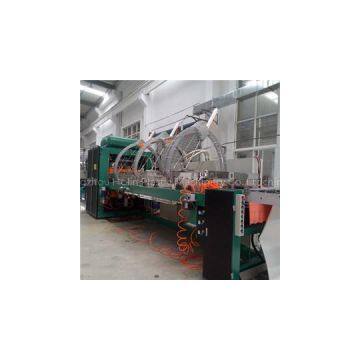

Full Automatic And Fast Speed PP Tray Thermoforming Machine

Place of Origin	China

This thermoforming is full automatic and high speed with 7 servo motors.It can make PET,Website: , PP, and PS lunch box and tray with high efficiency and reliable performance. Full automation can save labor and electricity?PP thermoforming machine Technical parametersMax. Forming area830mm×1060mmMax. Forming depth127mmMax. Forming speed30cycles/minMax. Positive forming pressure0.7MpaOven length4500mmHeat power200kwRoll loading device ??1 SETPneumatic loadingWith pre-unwinding deviceThermoforming machine4 sections oven1..1Outer oven body made by stainless steel 1.2 Inner oven made by zinc coated steel plate 1.3 Oven can be moved forward and backward; auto backward when machine stop 1.4 Oven can open and close like shell 1.5 Heater for upper oven: far infrared heater; heater for lower oven: cast aluminum heater and stainless heater tube 1.6 Chicken wire equipped between upper and lower ovenSheet feeding systemSpecialized alloy aluminum guide rail with inner cooling , the contact site with chain is steel-coated 1. Sheet width can be adjusted 2. Driven by AC servo motorForming Platen1. Upper and lower working platen moved by two guide post and four bar linkage 2. Upper and lower platen driven by AC servo motor 3. With pre-extension device, driven by AC servo motor 4. With air compressed system and in-mould air instant exhaust system (Vacuum system)Control panel ?1 group1. It is connected panel, dismountable 2. With specified air conditioner
