DA52,56S CNC Press Brake Controller

Place of Origin	China

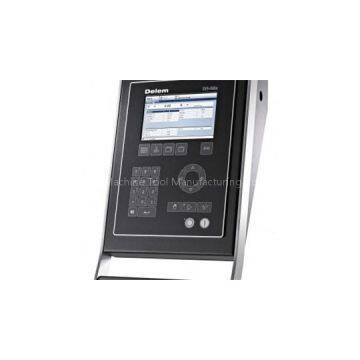

DA-52s Compact 4-axis colour CNC system for press brakesThe compact DA-52s is a complete CNC solution for conventional as well as synchronised press brakes.?The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets as well as in an optional pendulant arm housing.?Equipped with the Delem user-friendly user interface, the DA-52s provides all main press brake functionality.The unique ‘hotkey’ navigation gives direct access to the programs in memory and enables quick and easy programming of a product. All common bend parameters are located on one page. For advanced parameters an additional page can be selected.?Angle programming of the Y-axis, crowning function and pressure control are standard on board.USB interfacing enables the use of memory sticks as a fast product and tool backup medium.?DA-52s featuresQuick, one page programmingHotkey navigation7” VGA colour TFTUp to 4 axes (Y1, Y2, and 2 auxiliary axes)Crowning controlTool/material/product libraryUSB, peripheral interfacingAdvanced Y-axis control algorithms for closed loop as well as open loop valves?DA-56s Compact 4-axis color graphical CNC system for press brakesThe compact DA-56s provides easy CNC programming with the Delem 2D graphical product design tool. Machine adjustment and test bends are reduced to a minimum because of the quick and easy to use bend sequence determination tool.?The CNC program is generated with a one touch key stroke. You are ready to make the first part since all axes positions are automatically computed and the bend sequence has already been simulated on the screen with the machine and tools in real scale.In the production mode of the DA-56 the operator can graphically simulate the bend process of the product guiding him during the press brake operation.The basic machine control functions are Y1-Y2 and X axis, optionally a second back gauge axis can be used as R/Z or X2 axis. Also the crowning function is standard on board.DA-56s features2D graphical programming10,4" LCD TFT colour displayBend sequence determinationDeveloped length calculationCrowning controlUSB peripheral interfacingAdvanced Y-axis control algorithms for closed-loop as well as open-loop valves.
