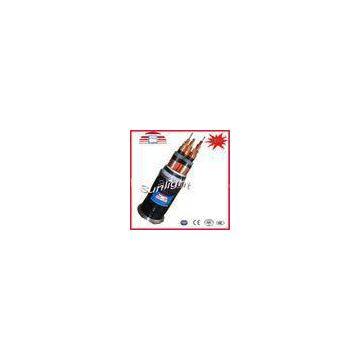

Electrical XLPE Insulated Cable And Wire , 16mm Armoured Cable 3 Core

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sunlight		Place of Origin	China
Model Number	YJV22 -3*185

Certification:ISO 9001:2008, TLC, CCC

? Electrical XLPE Insulated Cable And Wire , 16mm Armoured Cable 3 Core ? ? Specifications

pper conductor, medium voltage, 3cores, 300mm2

2. XLPE insulated

pper tape screen

4.steel tape armoured

5.PVC sheat
?

Use characteristic

1.installation temperature:≥0°C

2. long-term permissible operation temperature≤90°C

3.Under the condition of short circuit (the max. continuing time should not exceeding 5 seconds) the max. operation temperature:250°C

4.minimum bending radius:

?? single-core cable: 20D, mm

?? multicore?? cable: 15D, mm

?? Note:D means the actual outer diameter of cables

5. Suitable areas :

? Direct burial in the ground and the capacity of bearing certain mechanical force, not proper in the? pipeline

6.Main electrical characteristics

Item no.	? Uo/UKv Rated voltage Techniques	3.6/6	6/6 6/10	8.7/10 8.7/15	12/20	18/30	21/35	26/35
1	Ω/KM DCR	Referenced by IEC60502-2:2005
2	Regular part Discharge test	(kv) Inflicted voltage	6.2	10.4	15	21	31	36	45
(pc) Discharge max.capacity	10	10	10	10	10	10	10
3	Regular exchange Voltage test	(kv) Tested Voltage	12.5	21	30.5	42	63	53	65
(min) Continuing time	5?????????????????????????????????? 30
4	(kv) Frequency of voltage test in ? 4h	14.4	24	35	48	72	84	104
5	(kv) Thermal shock test for 10 ? times for each positive and negative	60	60/75	75/95	125	170
