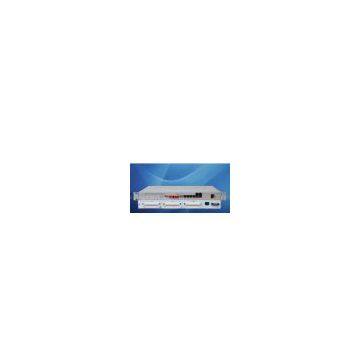

63E1 MSTP/SDH Multiplexer

Brand Name	IDM		Place of Origin	China
Model Number	IDM MSTP155-63

Delivery Time:3-5 business days

Overview

IDM MSTP155-63E1 is a SDH Multiplexer, which has two STM-1(155.52Mb/s) optical ports, 63 E1 interfaces, 4 physically separated FE ports with a bandwidth of N*2.048Mbpsand two V.35/V.11 ports. IDM MSTP155-63E1 can be used not only as a-n add-drop multiplexer (ADM), but also as a termination multiplexer(TM).The simple but practical network management software (NMS) is able to work for equipment configuration, fault diagnosis, data collection and real-time monitoring of network performance.

Features

Two STM-1 optical interface, provide optical 1 +1 redundancy. Provide up to 63 E1 interfaces. 2 N*64K (N = 0 ~ 31) V.35/V.11 channel. E1, Ethernet, V.35 and voice service optional. Provide 4 physically isolated FE ports, to achieve N × 2.048Mbps bandwidth. Support point-to-point, chain and ring network applications. Comply with the ITU-T G.813 standards and fully meet the timing accuracy. Powerful network management features, online real-time monitoring. Standard 19-inch 1U housing, easy to install.

Specifications

Optical interface

Rate: 155Mbps±4.6ppm Fiber mode: Single/multi-mode Consumption: -15 ~ -8dBm Wavelength: 1310nm/1550nm Physical connector: FC/SC Sensitivity: Better than -32dBm

?E1 interface

Rate: 2048Kbps Code: HDB3 Compliance with: ITU-T G.703 standard Impedance: 75Ω/120Ω Frame structure: PCM30/31 Signaling: In-band Channels: Up to 63

?Ethernet interface

Rate: N ×2.048MbpsN≤50 Duplex: Full/Half auto-negotiation Physical connector: RJ-45 Compliance with: IEEE802.3

?FXO/FXS interface

Impedance: 200Ω + 560Ω//0.1μF Audio frequency range: 300Hz ~ 3400Hz Compression ratio: A law ITU G.711 Loopcurrent: 25mA

?EM2/4 interface

Audio frequency range: 300Hz ~ 3400Hz Compression ratio: Class A in ITU G.711 Echo loss: >18dB Impedance: 600Ω balanced

?V.24 interface

Rate: asynchronous <=9600bps and asynchronous 64kbps Comply with: CCITT V.28

?V.35 interface

Rate: N × 64KbpsN=0 ~ 31 Comply with: ISO2593 Physical connector: RJ-45 Comply with: ITU-T V.35 Power Supply: 220VAC/- 48VDC Consumption: ≤50W

?Operating environment

Temperature: -30℃~ 50℃ Humidity: 0 ~ 95% (non-condesing)

?Dimensions

Width × depth × height (mm): 440mm× 230mm × 45mm
