Passive Optical Node

Place of Origin	China

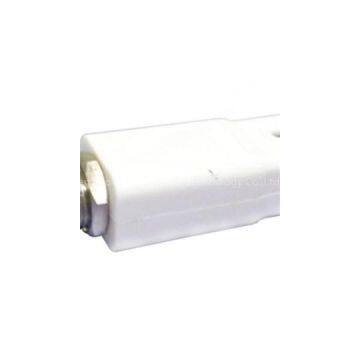

Product details Photon Broadband Technology Co.,Ltd is one of the leading China passive optical node manufacturers, welcome to wholesale cheap passive optical node from our factory. PTR3282P Passive FTTH mini Node No power required RF bandwidth 45M~1GHz; Output level is 60dbm(-1db) wide optical power input range -10~+10dBm; Optical input:1310nm and 1550nm Specification Description Value Unit Conditions / Notes Optical Specifications (Forward Path) 1. Wavelength 1100～1600 nm 2. Optical Power Input Range -10 to +10 dBm Recommended Optical Power Input Range -7 to +7 dBm 3. Optical Input Return Loss ≥45 dB RF Specifications (Forward Path) 4. Bandwidth 47～1003 MHz 5. Flatness ±0.75 dB 47～870MHz,At 25 ℃ 6. Slope 0~1.0 dB 47～870MHz,At 25 ℃ 7. Temperature Stability ±1.0 dB In the operating temperature range (-25 ~ +65 ℃) 8. Output Level 60±2 dBuV -15dBm input optical power, per channel modulation 4.0%, in the 860MHz point test, at 25 ℃ 9. Impedance 75 Ohm 10. Return Loss（47～1000MHz） ≥14 dB At 25 ℃ 11. MER ≥33 dB -1~+10dBm input optical power ≥26 dB -10 dBm input optical power Environmental Parameters 13 Operating Temperature -25～65 ℃ 14 Storage Temperature -40～70 ℃ 15 Storage Humidity ≤95 ％ Non- condensation User Interface 16 Opticasl Connector Type FC/APC or SC/APC Optional 18 RF Output Connector Metric or imperial
