fly ash block making machine

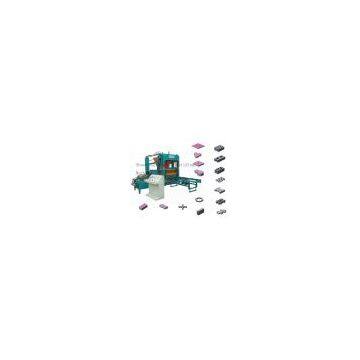

T4-15B construction cement block forming machine instruction:

1.QT4-15B construction cement block forming machine can produce various hollow block, solid bricks, color/paver blocks, and curb stone blocks, etc. QT4-15B adopts the platform vibration; meanwhile the upper mould is pressed by the two hydro-cylinders.
2.QT4-15B construction cement block forming machineuses international brand-name Germany Siemens motors and Japan Mitsubishi PLC, the limit switch is Omron brand, reliable quality, low fault rate and durable. The material of whole frame is national standard steel, with high strength and reliable quality. All of its moulds are processed in high temperature, can work 80000-100000 times without losing shape.
3.Feeding system: QT4-15B construction cement block forming machine adopts 360°feeding system, can finish feeding materials one time, saving much time, and ensure the density of blocks.
4.All our products have got ISO9001, CE and SGS certification.
5.Production capacity: QT4-15B construction cement block forming machine can produce hollow blocks (400*200*200mm) 4pcs/mold, 600-900pcs/h, paver blocks (200*100*60mm) 16pcs/mould, 1920pcs/h, and the solid bricks (240*115*53mm) 28pcs/mould, 5000pcs/h.
6.Theoretical workshop area: 200 square meters, need about 8-10 workers. The office, curing area, stacking area are arranged according to your specific conditions.

QT4-15B Main technical parameters
Dimension of host machine      2440×2000×2600mm
Host machine power             27KW
Moulding area                  400×800mm
Vibration force                40KN
Moulding period                15-20S
Capacity                       70.25KVA
The size of the pallet         1010×550×20/25mm
Mixer model                    JS500
Weight of the host machine     7.6T
General water Consumption      5T/every day
Voltage                        380V

Theoretical workshop area : 180m2 , need about 6-9workers .the office , curing area and stacking area to arrange according your fact status..

Production capacity
Size(LxWxH)   Pcs/Mould   Pcs/Hr   Pcs/8Hrs      m3/year
400X100X200      8      1200-1920 9600-15360  27648-36864
400X150X200      6       900-1440  7200-11520  31104-41472
400X200X200      4       600-960   4800-7680   27648-36864
400X250X200      3       450-720   3600-5760   25920-34560
