6 Circuits Split Pancake Slip Ring Through Bore 38.1mm With Fiber Brush
- T/T L/C D/P D/A
- 7 days
You May Like
-
Industrial Modular Slip Ring Pancake Standard 360 Continuous Rotation
-
46mm Through Bore Pancake Slip Ring Cable Reel 5A With 2 Circuits
-
Compact Fluid Slip Ring Rotating Conductive 4A 250V AC / DC Low Noise
-
Single Channel Copper Rotary Slip Ring Coaxial Rotary Joint 18 GHz For Instrument
-
Sealed Commutator Electrical Slip Ring For Wind Turbine IP 65 Protection
-
Metal Brush Rotating Slip Ring Wind Turbine Standard With 6 Circuits
Product Details
| Brand Name | Jinpat | Place of Origin | China | |
| Model Number | LPK020 |
Product Description
Certification:CE.FCC.UL.RoHs.SGS.ISO9001.GJB

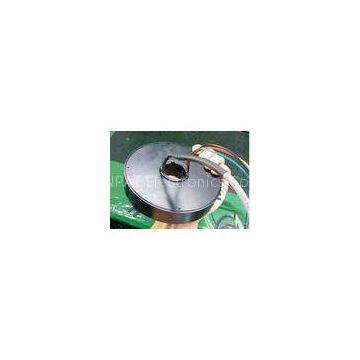

6 Circuits Split Pancake Slip Ring Through Bore 38.1mm With Fiber Brush
LPKS020-170-0605-1401Slip Ring
with Through Bore 38.1mm
1.?Quick Detail
The LPK020-170-0605-1401 Pan Cake Slip Ring uses advanced fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.
A slip ring is also called as a rotary electrical interface, collector, swivel or a commutator.
Pancake slip rings which are made of several pieces may have even larger diameters.
Those slip rings are called Splitted pancake slip rings.
A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.?
The 20.0mm unobstructed through-bore provides routing space for hydraulics, pneumatics or a concentric shaft mount.?
2.?Applications
1. Packaging / wrapping machinery
2. Semiconductor handling systems
3. Industrial machinery
4. Exhibit Display machinery
5. Medical equipment
6. Rotary index tables
7. Process control equipmentEmergency lighting
8. Heavy equipment turrets or cable reels
9. Manufacturing and process control equipment
10.?robotics palletizing machines
3.?Specifications
| Specification | |
| Circuits | 6 circuits @ 5A,14 circuits @ 1A |
| Operating Speed | 10rpm |
| Working Temperature | -20℃~ +60℃ |
| Working Humidity | 60%RH or higher |
| Electrical: | |
| Voltage Rating | 380VAC/DC or higher |
| Dielectric Strength | ≥1000V@50Hz between each circuit |
| Insulation Resistance | 1000MΩ@ 500VDC |
| Electrical Noise | 1mΩ Min |
| Mechanical: | |
| Contact Material | Precious metal |
| Housing Material | Aluminum alloy |
| Lead Wire Size | Tinning AWG22/28, |
| Lead Wire Length | Standard 300mm (11.811inch) |
| Torque | ≤0.12 g·m (for reference ) |
| Protection | IP54 or higher |
4. Feature Advantage
1. Modular design
2. Compact 170mm outside diameter
3. Steel bearings and machined shaft and housing for harsh environment
4. ?Collar mounting is standard; flange mounting is optional
5. Various lead exits are available
6. Silver plated rings are standard. Gold plated optional.
7. ?Sealed unit
5.?Competitive Advantage
1.Transfers control and data signals
2. Fiber brush technology provides maintenance-free operation (no lubrication required)
3. Customized configurations for your application
4. Modular design meets special requirements through off-the-shelf manufacturing techniques
6. Dimensions
Application Pictures
JINPAT LOOK
If you want to know more details about JINPAT Slip Rings, please contact us with your special needs!
Contact Us
- Shenzhen JINPAT Electronics Co., Ltd
- Contact nameMs. Ellen Chat Now
- Phone86-755-82042235
- AddressRm 701702,B Bldg,Southen International Plaza, Dongying, Shandong
Product Categories
| Capsule Slip Ring | HDMI Slip Ring | High Current Slip Ring | Hollow Shaft Slip Ring |
| Mercury Slip Ring | Miniature Slip Ring | Pancake Slip Ring | Rotary Slip Ring |
| Separate Slip Ring | Wind Turbine Slip Ring |
New Products
-
Flexible Miniature Slip Ring For Transfer Car 76 Circuits Capsule Length 105.65mm
-
Electrical Rotating Wind Turbine Slip Ring Carbon Brush Contact 1000V AC / DC
-
Wind Turbine Power Slip Ring In Generator 1m 30RPM Operating Speed
-
Rotary Fluid Small Slip Ring Cable Reel Sealed Silver With 4A Current Rating
-
Rotating Electrical Connector Mercury Slip Ring , Two Poles Rotary Swivel Joint
-
Rotating Mercury Electrical Slip Ring Connectors For Surgical Lamp 4 Poles 2 Circuits
-
Digital Signal Wind Turbine Generator Slip Ring 29 Circuits Gold - Gold Contact
-
High Voltage Wind Turbine Slip Ring , 3 Poles Rotary Electrical Interface
-
High Speed Wind Turbine Slip Ring , 24 Circuits Medical Equipment Sealed Slip Ring
-
82mm Rotary Pancake Slip Ring , Emergency Lighting High Voltage Slip Ring
-
Customized Commutator Through Bore Slip Ring Pancake 170mm Outside Diameter
-
Fiber Brush Pancake Slip Ring , 8 Circuits Metal Through Bore Slip Ring
-
RF Coaxial HDMI Slip Ring 12 Circuits CCTV Pan Electrical Rotary Joint
-
Sealed Pancake Separate Slip Ring Brushes Modular PCB Design 2 Circuits
-
Carbon Brush Compact Wind Turbine Slip Ring Commutator With 10 Poles IP65
-
Turn Table Standard Capsule Slip Ring 56 Circuits With Gold - Gold Contacts
-
Phone Turnable Standard Miniature Slip Ring Through Bore 10 Circuits 1 Amp
-
24mm Compact Slip Ring Capsule 12 Circuits For Shadowless Lamp
-
42.53mm Capsule Standard Slip Ring Rotary Joint 24 Circuits For Pan / Tilt Camera Mounts
-
IP54 High Voltage Capsule Slip Ring , 30 Circuits Turntable Electrical Rotary Joint
-
Spinning LED Sign Board High Voltage Slip Ring Mercury Precision 10m Electrical Noise
-
Black LED Electric Rotary Joint Slip Ring Conductive 6 Circuits With Low Electrical Noise
-
Stage Lighting Electric Miniature Slip Ring 25.3 Capsule Length Heat Resisting
-
Rotary Joint Capsule Slip Ring For Robotics 3 Circuits 15A 240V AC / DC
