10mm Pixel Pitch DIP Outdoor Digital LED Advertising Display 10m+ View Distance
- T/T L/C D/P D/A
- 7 days
You May Like
-
P10 SMD Full Color outdoor Curved LED Display High Brightness Ultra Thin Design
-
10 mm Pixel Pitch SMD Outdoor LED Advertising Screens Wireless Customized Size
-
16 mm Pixel Pitch DIP LED Curtain Wall Large View Angle H120 / V60 , ETL / FCC / CCC
-
8000 nits High Brightness Outdoor LED Advertising Screens DIP346 Energy Saving
-
Static Scanning DIP Outdoor LED Advertising Screens 8000 Nits 20 mm Pixel Pitch
-
IP65 Outdoor Full Color 1R1G1B Led Curtain Wall Display Screen 16 X 16 Pixels
Product Details
Brand Name | Yaham | Place of Origin | China | |
Model Number | S0 |
Product Description
Certification:CE/UL /ETL/FCC/CCC

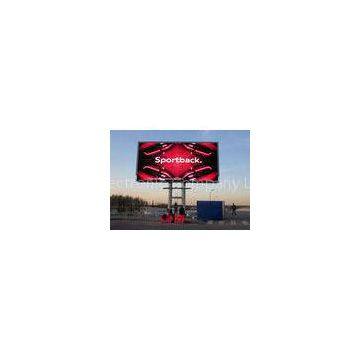

10mm DIP outdoor fixed digital advertising led display
Specifications:
Product Series | S0 |
LED Type | DIP |
Pixel Pitch | 10mm |
Pixel Density | 10000 pixels/sq.m |
Pixel Configuration | 1R1G1B |
Module Dimension(W x H) | 160 x 160mm |
Module Resolution(W x H) | 16 x 16pixels |
Cabinet Dimension(W x H) | 1280 x 640mm |
Cabinet Resolution(W x H) | 128 x 64mm |
Cabinet Weight | 65kg |
Viewing Angle | H 110, V 60 |
Besting Viewing Distance | 10m+ |
Maintenance | Front / Rear |
Ingress Protection | IP65 |
Brightness | 8000 nits |
Gray Scale | 12 bit |
Color | 68.7 billion colors |
Color Temperature | 5500k-8000k |
Refresh Rate | 2000Hz+ |
Contrast Ratio | 10000:1 |
Power Supply | 110-380V,50/60Hz |
Operation Temperature | -20℃—+50℃ |
Storage Temperature | -20℃—+60℃ |
Operation Humidity | 5%—95%RH |
Display Capacity | Video, animation, graphic, text |
Driving Method | 1/4 dynamic |
Power Consumption | Max. 400W/sq.m; Avg. 160W/sq.m |
Technical features
1.Preeminent effects: Clear and stable pictures without distortion and disturbance.
2.High quality: adopting first-class chips and wafers imported from abroad.
3.Flexible form: continuity, overlying, combination of dynamic and static playing, various effects include rolling moving, typewriting, gradual changing and so on.
4.off-line running function: adopting the monolithic design technology and computer string communication way, which can operate in off-line state setting the dates and revising a data via the telephone line.
Applications:
Outdoor fixed advertising
Billboard
Architecture
Stadium
Competitive Advantage:
Smart module: no repeated calibration is required after the replacement of the dysfunctional modules, the new module could automatically load the specifications of brightness, color temperature, etc, from the neighboring modules that have been pre-set with correct data, so any newly replaced module could deliver as perfectly correct color and brightness as the other modules do.
Front and rear service: all the components can be effortlessly serviced both from front and rear.
Highly customization: It is our philosophy to create something not that ordinary yet fully fulfill our customer’s ideas, our rich experiences in led display engineering and creative projects enable us to bring any of your ideas to life.
Excellent stability: Our mission is to draw upon a spirit of artisanship and perfectionism to create the most reliable led display system to reinvent your way of display. The stringent quality control requirements we set for ourselves and the feedbacks we got from our customers encourage us to be the first to guarantee a warranty of 5 years.
