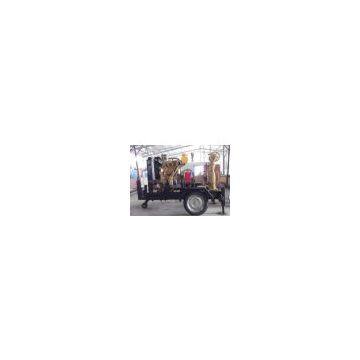

Sell Diesel Engine Water Pump Set

1)Stable performance

2)Energy saving diesel engine

3)High Efficient water pump

Usage: Farm irrigation,fire fighting,industrial water supply system

Treated Water: Fresh water,River water

Rated Outflow:40-1440m³/h

Rated Head Lift:7-120m

Diesel engine parameters:

1)Model:R4100D

2)Rated output/Max output(KW):30.0/33KW

3)Rated speed(r/min):1500

4)Starting method: Electric motor 12V DC

5)Cooling method: Closed water cooling

6)Governing method: Mechanical/Electronic governing(Optional)

7)Intake method: natural
8)Cylinders:4

9)Bore/Stroke:100/115mm

10)Type: in line,4 stroke, humid liner, direct injection

Water pump parameters:

1)Model:IS150-125-315

2)Type: Single grade, single suction,centrifugal

3)Outflow:240m³/h

4)Head:29m

5)Shaft power:23.7KW

6)Inlet diameter:150mm

7)Outlet diameter:125mm

8)Impeller diameter:315mm

9)Casing material: cast iron

10)Shaft material: cast iron

11)Impeller material:cast iron

12)Sealing method: Stuffing sealing/Mechanical sealing(Optional)

Control system(OPTIONAL):

1)AMF/ATS function

2)Warning of oil low pressure, slow speed, high water temperature, high oil temperature etc

3)Display functions with warning ,Auto start and stop

4)Weather canopy,trailer type,movalbe type

Standard equipment:

1)Diesel engine: 1set

2)Water pump: 1set

3)Control panel: 1set

4)Flexible shaft joint: 1pc

5)Steel mounting base:1set

6)Fuel tank: 8hr working capacity (OPTIONAL)

7)Accessory spare parts 1set

8)Technical file: 1set

9)With affiliated sensors and sensor wires

10)Inlet/outlet flange,bolt&screws,bottom valve and filters (OPTIONAL)
