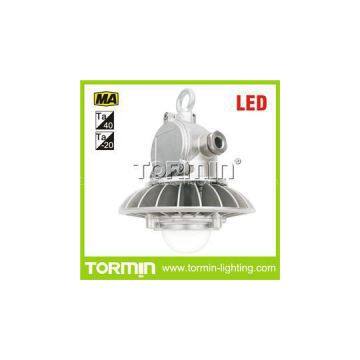

Strong Anti Corrosion LED Steel Stainless Explosion Proof Requirements Coal Mining Lights

Place of Origin	China

Model: DGC30/127L（A） Ex Code: Ex d I MbAmbient temp.: -20 ℃ to +40 ℃Standard: GB3836.1,Website: , GB3836.2IEC60079-1:2007,MODApplication 1. Widely used for Mining work.2. Approved for safe in Tunnel with other hazardous explosive mixture of methane gasCharacteristics 1. Specially designed for mining working surface, which is made by 304 stainless steel.2. A full range of high conductivity material accelerate convection cooling structure, effective guarantee long-term use in high temperature environments.3. Optoelectronic integrated technology,no dark spot, no ghosting, the average light efficiency of whole lamp can reach to 100 lm/W, energy-saving is 60% more than Metal Halide Lamp.4. Universal AC-DC, power factor above 0.98.5. The rapid replacement of power without welding can be realized.6. Independent wiring chamber, safe and easy installation and maintenance.7. Designed for Roadway Layout with ring mounted which can be connected in parallel.Technical Specification ItemTechnical specificationInput voltage range127VACInput frequency50Hz/ 60HzLight sourceLEDService life50000hCRIRa 70(80 Optional)CCT3000K/4000K/5000KScrew ThreadG3/4"Leading-in cable diameterφ9mm~φ14mmDimensionφ200* 218mmNet weight4.4KgOrdering referenceOrderingreferenceWattageLight outputSpaceheightratioMountingheightEquivalent toHigh Pressure Mercury LampDGC30/127(A)30W2600lm1.753~6m70W
