Home > Products > Communication Enclosures > Black / White Solar Power System Communication Enclosures Custom

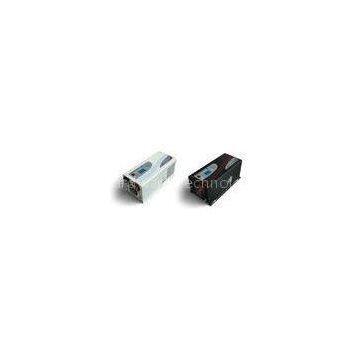

Black / White Solar Power System Communication Enclosures Custom
USD $30 - $70$
/ Set
1 Set(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
White Metal Enclosure Cabinet For Communication and Telecom Power System
-
5000w Communication Enclosures For Telecom Solar Power System
-
1550nm CATV Internal Modulation Fiber Optic Transmitter Cabinet
-
OEM IP54 Metal Communication Enclosures For Power Distribution
-
Rectangular Communication Enclosures With Cooling Tubes / Radiators
-
8 Port Fast Ethernet Poe Communication Enclosures , Switch Enclosure
Product Details
| Brand Name | Runze | Place of Origin | China | |
| Model Number | RZ-01 |
Product Description
Certification:ISO 9001:2008
Black / White Solar Power System Communication Enclosures Custom
1000w~6000w telecom solar power systems enclosure
1.1000w~6000w telecom solar power systems
2.Pure sine wave
3.Auto OLP,OCP,OTP,SCP
4.Self recover function
Quick Detail:
| Place of Origin | Guangdong China (Mainland) | ? | Features | big charge current max 70A? |
| Output Power | 1000w~6000w | wave form | pure sine wave | |
| Output Type | Single | display | LCD&LED? | |
| Size | 590*333*310mm? | Color | black /white/Grey? | |
| Weight | 20~50kg? | frequency | low frequency inverter? | |
| Input Voltage | 110v/220v ac? | Transformer | copper? | |
| Output Voltage | 110v/220VAC+- 10%? | for loads | heavy load/solar power? | |
| Type | DC/AC Inverters? | certificate | ISO9000,UL? | |
| Output Frequency | 50Hz or 60Hz? | Range | 1000w-6000w? | |
| Output Current | 10a/15a/20a/25a/30a/40a/70a? | DC | 12V~48V? |
Description:
Outstanding features: copper transformer
Durable construction for long life under extreme environmental conditions
70 amp automatic three-stage battery charger (bulk, absorption, and float)
Low idle current (less than 1 watt) conserves energy when no loads are present
Built-in starting control circuits for two- and three-wire generator starting systems
Applications:
Used all the power supply products
Specifications:
Output Voltage Waveform As same as Input Waveform
Over-Load Protection(SMPSload) Circuit breaker
Output Short Circuit Protection Circuit breaker
Efficiency (Line Mode) >95%
Transfer Switch Rating 30A
Transfer Time (Ac to Dc) 10ms (typical)
Transfer Time (Dc to Ac) 10ms (typical)
Pass through without Battery: Yes
Max Bypass Overload Current 30A
Invert Mode Specifications:
| Output Voltage Waveform Sine wave | |
| Power Factor | 0~1.0 |
| Nominal Output Voltage (V) | 230Vac |
| Nominal Output Frequency (Hz) | 50Hz ± 0.3Hz |
| Auto tracking Main Frequency(Hz) | Yes (Following Main first connection)50Hz @48-54Hz ;60Hz @58-64Hz |
| Output Voltage Regulation | ±10% rms |
| Nominal Efficiency | >80% |
| Surge rating (10s)? | 3000VA 6000VA 9000VA 12000VA 15000 VA 18000VA |
| Capable of starting electric motor | 1 HP 1 HP 2 HP 3 HP |
| Output Short Circuit Protection Current limit (Fault after 10s) | |
| Inverter overload Breaker Size | 30A 30A 30A 35A 50A |
| Nominal DC Input Voltage | 12V 24V 12V 24V 24V 48V 48V |
| Min DC start voltage | 10V/20V/40V |
| Power saver Load | ≤25W (Enabled on “P/S auto” setting of Remote control) |
Charge Mode Specifications:
| Nominal Input Voltage | 230Vac |
| Input Voltage Range | 196~243Vac |
| Nominal Output Voltage According to the battery type | |
| Nominal Charge Current | 35A 35A 65A 35A 45A 35A 40A 50A |
| Charge Current Regulation | ± 5Adc |
| Battery initial voltage | 0 –15.7 Vdc (can operate with 0V battery) |
| Charger Short Circuit Protection Circuit breaker | |
| Over Charge Protection Bat | V ≥ 15.7Vdc/31.4Vdc,beeps 0.5s every 1s & fault after 60s |
