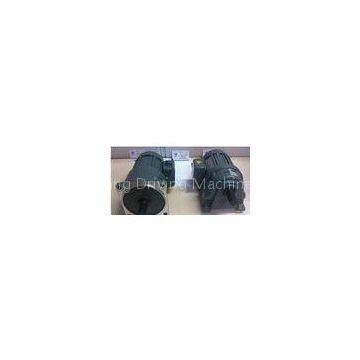

Converter Inline Gearbox Helical Reduction Gear Motor Equivlent SEW

Characteristics

1. Two types of housing: Aluminum alloy and cast iron; Two kinds of frames: foot mounting and flange mounting. They are good-looking in appearance, suitable for universal mounting.

2. Helical gear with the high-tensile alloy material makes the construction more compact, housing smaller, efficiency higher, output torque larger.

3. Hardened facing & well finished transmission gear has the advantages : seldom distortion, high precision,stable transmission, lower noise, possible for continuous work under the dreadful conditions.

4. With 6 specification for the diameter of output shaft: ?18,?22,?28,?32,?40,?50.

5. Two or three-stage transmission, large in ratio range, each single frame size with 14 ratios from 5:1 to 200:1.

6. Using high quality bearing prolongs the use life.

7. High-performance oil seal prevents the lubricant from leaking back to the inner of motor.

8. Three-phase motor combined the standard and full-enclosed aluminum motor, which is good in waterproof, easy in heat dissipation, high in running efficiency.

9. Modular combination extends the transmission ratio from i=5:1 to 200:1.

Models & Sizes

G18, G22, G28, G32, G40, G50

GL18, GL22, GL28, GH32, GH40, GH50

GLW18, GLW22, GLW28, GHW32, GHW40, GHW50

GLF18, GLF22, GLF28, GHF32, GHF40, GHF50

G series helical gear reducer motor, with 3-phase, single-phase motor
