Product Details
| Brand Name | PM | Place of Origin | China | |
| Model Number | PTC-1450 |
Product Description
Certification:CE

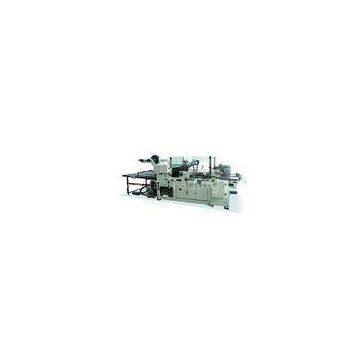

Window Patching Automatic Packaging Machines / Auto Bagging Machine
WINDOW PATCHING MACHINE
Main Features:
?Window Patching Machine is widely used in the window patching to the liquor box, gift box. napkin box, cosmetic box, toy box, etc. It can be used for window film cut, creasing ,gluing and patching of card 200-500g/m2 and flute l-2.5mm thick.
Specifications:
1. Model: PTC-1450
|
Max. Paper Size |
1450×1060 mm |
|
Min. Paper Size |
160×140 mm |
|
Max. Length |
680×520mm |
|
Min. Length |
80×60mm |
|
Sheet Thickness |
0.05-0.20mm |
|
Max. Working Speed |
6000s/h |
|
Cardboard |
200-500g/m2 |
|
Corrugated Paper |
≤3mm |
|
Total Power |
3200kg |
|
Total Weight |
14kw |
|
Overall Dimensions |
6600×2800×2000mm |
|
When the roller pull out the Dimensions) |
6600×3800×2000mm |
2.The structure, of the machine
Paper?Feeding?Parts
The?paper?feeder?parts?is?controller?by?the?servo?motor,the?paper?pile?make?the?intermittent?movement?in?the?process?of?the?paper?feeding,the?belts?operate?long?life?,process?the?paper?products?to?the?conveying?parts?steady?and?orderly.
Conveying?Parts
The?paper?conveying?parts?installed?the?four??conveying?chains?with?the?four?pushing?blocks,it?can?be?adjusted?according?to?the?paper?shape.It?is?equipped?with?the?4?photosensor,detect?the?paper?reaching?condition,counting?,?paper?jammed?detection.
Gluing?Parts
The?gluing?parts?adopt?the?adjustable?parts?gluing?structure?,?it?is?convenient?for?adjustable?according?to?the?paper?requirment?and?the?gluing?position?,save?the?gluing?quantity,it?is?easy?for?pulling?out?the?gluing?parts?,convenient?for?washing.The?gluing?roller?stopped?the?gluing?when?stopped?the?machine.
And?the?conveying?parts?dropped?automatically,?the?gluing?is?not?easy?to?print?on?the?conveyor?belts.
The?upper?roller?is?the?cutting?film?roller?with?the?two?blade?,one?the?upper?blade?,the?other?is?the?lower?blade,finishing?the?cutting?of?the?film.
The?below?roller?is?the?suction?roller?,the?film?is?patched?on?the?suction?roller?
Paper?Delivery?parts
The?patching?products?conveying?to?the?paper?delivery?plate,finish?the?paper?accumulation?and?
collection.
3.Electrical Components
a) Intermediate Relay : OMRON
b) Breaker:SCHNEIDER(France)
c) Photoelectric Switch :OMRON(Japan)
d) Bearing(Main Parts):SKF(Switerland)
e) Transformer: TENGEN
f) Frequency Converter:DELTA
g) Principle Logic Controller :VIGOR
h) Servo Motor/Driver ;TECO
i) Vacuum Pump:TONGYOU(ZHEJIANG)
j) Three Phase Motor: JSCC AUTOMATIC (XIAMEN) LTD.
k) Rubber Roller Motor:ZHEJIANG JIAXUE(Joint Venture)
Machine packed in wooden case , standard export packing
Machine shipped within 20 days after receiving payment
1. ?The whole machine has full 1 year warrantey, we will send the parts for replacing free of charge during warranty.?
2. ?We will provide lifetime service online, you can get technical support within 24 hours by Email/ Skype/ Remote assistance etx.?
3. Proffesionl person reply your questions.?
