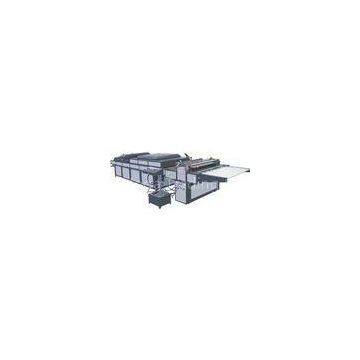

Semi Automatic UV Coating Post Press Equipment PLC Control Coated Equipment

The machine is a kind of UV oil coating machine for paper which adopts international advanced?coating technology and also combines the features of domestic printing industry. After coated?by the machine, the products will have perfected gloss, and also be anti-fouling, damp-proof,?fade-proof and wear-resistant. The coating unit of the machine adopts PLC air-knife system, which guarantees the coating smooth to the paper over 80g/m.The machine is composed of 5 units: manual paper feeder, coating unit, IR drying unit, UV drying unit and easy receiving table. The machine is an ideal choice for medium and small enterprises for its economic and utilitarian assembly m'of working stations.

·Manual paper feeder

-- Paper sheets are put on the table by hand one by one.

-- Paper regulating plate regulates manual paper feeding.

·UV drying unit

--UV radiation makes UV oil hard and wear-resistant, and paper surface will be much glossier.

-- Fast cooling system equipped to prevent paper curvature

-- Mesh Teflon belt conveyor is equipped with air aspirator to guarantee paper conveyed steadily.

·I.R drying unit

-- I.R drying devices equipped

-- Hot air circulation system equipped

-- To do drying after water-base coating or solvent coating

-- Mesh Teflon belt conveyor is equipped with air aspirator to guarantee paper conveyed steadily.

·UV Coating unit

-- UV coating unit is equipped with high sensitivity of PLC air-knife system which guarantees smooth coating to thick and thin paper.

-- Micro adjustor equipped to control oil usage and coating quality is convenient for users to adjust upon application needs.

-- Paper winding protector: when paper sticks and wraps the coating roller, the protector will stop the machine's running and the buzzer rings at the same time.
