Home > Products > DPF Substrate > Honeycomb Ceramic Diesel Particulate Filter / DPF Substrate For Soot Filter
Honeycomb Ceramic Diesel Particulate Filter / DPF Substrate For Soot Filter
- T/T L/C D/P D/A
- 7 days
You May Like
-
Cordierite Wall Flow Filter / DPF Substrate For Diesel Catalytic Converter
-
Cordierite Ceramic Diesel Catalytic Converter Substrate For Wall Flow Filter
-
Selective Catalytic Reduction SCR Substrate For Ceramic Catalyst Supports
-
100CPSI Selective Catalytic Reduction SCR Substrate / DOC Support For RTO
-
200CPSI SCR Substrate , Selective Catalytic Reduction Support
-
100CPSI SCR Ceramic Substrates For Selective Catalytic Reduction
Product Details
| Brand Name | Yuxing | Place of Origin | China | |
Product Description
Certification:ISO9001 TS/16949

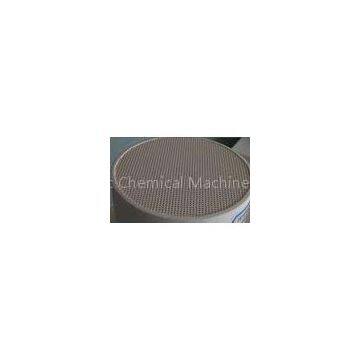

Honeycomb Ceramic Diesel Particulate Filter / DPF Substrate For Soot Filter
?
2. ? 1.Product use
?This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.
2.Overall dimensions standards
|
Item |
?Overall dimensions |
standard values |
Test method |
|
Wall thinkness |
100CSI |
0.46MM±0.04 |
vernier caliper |
|
200CSI |
0.36MM±0.04 |
vernier caliper |
|
|
Overall dimensions |
OD:＜120MM |
±1.0MM |
vernier caliper |
|
??????????? ≥120MM |
±1% |
vernier caliper |
|
|
Height:＜150 |
±1.0 |
vernier caliper |
|
|
???????????? ≥150 |
±1%Height |
vernier caliper |
|
|
Hole density(Holes /inch2) |
100CSI |
100±10 |
vernier caliper |
|
200CSI |
200±10 |
vernier caliper |
|
|
Hole sealing integrity |
100% Intact |
Bright light perspective |
|
|
Internal crack |
Bright light perspective |
Physical and chemical properties
|
Item |
Standard value |
Test methods |
|
|
chemical component |
Al2O3 |
35.4%±1.5% |
chemical analysis |
|
SiO2 |
50.9%±1.5% |
||
|
MgO |
13.5%±1.5% |
||
|
RT Mpa |
≥10.0Mpa |
universal material testing machine |
|
|
porosity |
≥50% |
Gravimetric method |
|
|
Max. working temperature |
1400℃ |
high-temperature electric resistance furnace |
|
|
CET(800℃) |
≤1.2*10-6/℃ |
thermal dilatometer |
|
|
The average pore aperture |
7～15 |
Mercury Injection Apparatus |
Description:
This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.
Benefits of Products:
●High porosity of hole on the wall of high porosity, good liquidity and uniform distribu
