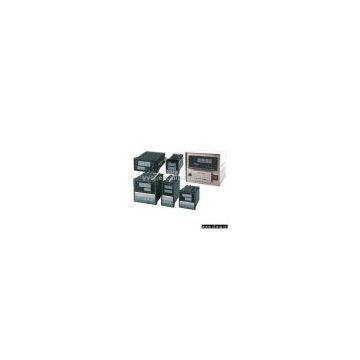

Sell Micro Processor Temperature Controllers

Place of Origin	China

Model No.:XMT-808
Product Origin:China
Brand Name:CJ
Price Terms:FOB, CFR
Payment Terms:T/T, L/C
Certification:
Description:Features: 1) Many kinds signals, such as thermal couple, thermal resistance 2) Can input freely, and also can set range freely 3) High performance and reliable intelligence ability 4) Software zero set co-alignment 5) Single cooling zone thermal bulb 6) Amplifier zero set automatically 7) Display precision prior to 0.2%FS 8) Fuzzy system linked with traditional PID method, control fast & smoothly 9) Advanced no-over-adjustment auto-set program 10) Freely selected output: rely contact, logic electrical level, silicon control single- phase or three-phase's over-zero & shift-phase spark pulse, analogue capacity 11) In addition to one output of analogue capacity linear variance & two sets output of alarm contact, the output volume can be set. 12) Auto / manual mode switch, easy to use 13) Thermal couple: S, K, E, J 14) Thermal resistance: Pt100 Cu50 15) Basic error: ±0.2% ±a dot of total range of input 16) Resolution factor: 1oC, 0.1oC 17) Sampling period: 3 times/sec 18) Alarm function: top-limit, bottom-limit, top error, bottom error 19) Alarm output: relay contact AC250V 3A(impedance) 20) Control output: relay contact AC250V 3A(impedance) 21) SSR voltage:0 ～ 18V 22) Over-zero spark pulse: light couple silicon control output 1A 600V 23) Shift-phase spark pulse: transformer close off output peak value 3V, 30mA 24) 0 - 10mA electric current output (load impedance: 500Ω±100Ω) 25) 4 - 20mA electric current output (load impedance: 250Ω±100Ω) 26) Control means: fuzzy PID control, bit manipulation control, manual control 27) Manual function: replace output through keyboard 28) Power: AC (85-242)V 50/60Hz 29) Work environment: temperature: 0 - 50oC, humidity: ≤85%RH, no corrode, power: ≤5VA 30) Face plate dimension: 80 x 160, 160 x 80, 96 x 96,72 x 72, 96 x 48, 48 x 96, 48 x 48mm
