Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Liyi
- Model Number: LY-1067
- Power: Electronic
- Usage: Tensile Testing Machine
- Capacity: 2,5,10,20,50,100,200,500,1000kg
- Temperature range: -40~150C
- Accuracy: â?¤0.5%
- Dongguan LIYI Environmental technology Co.,Ltd
-
Ningbo, Zhejiang, China
- Main products: environmental testing machine;tensile testing machine;paper printing & packing testing equipment;paper printing & packing testing equipment;rubber and plastic testing equipment;luggage test equipments;Fabric Testers;Battery Testing Equipments;
Home > Products > Tensile Testing Machine > High Low Temperature Peel Strength tester

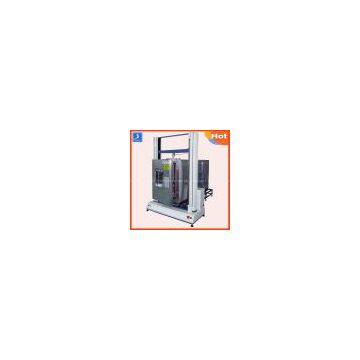

High Low Temperature Peel Strength tester
US$ 5000 - 20000
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | LIYI | Place of Origin | China | |
| Model Number | LY-1067 |
Product Description
Packaging & Delivery
| Packaging Details: | Standard export wooden case |
|---|---|
| Delivery Detail: | Within 15 days |
Specifications
1.Manufacturer
2.0.5 accyracy,high quality
3.Combine temperature humidity and tensile tester
High Low Temperature peel strengh tester
High Low Temperature peel strengh tester combines high-low temperature tester with peel strength tester wonderfully. It can restrain the error brought by changing environment during test process. Setting up different fixtures can test 180&90 degree peeling strength, separating force,ect. for the adhesive material in the high-low temperature environment. This machine can be changed into programmable temperature&humidity tester according to your needs.
Specifications:
|
Capacity |
2,5,10,20,50,100,200,500,1000kg |
|
Choosing capacity |
3 to 10 times of the most value about the specimen damage |
|
Unit |
g,kg,N,KN,LB( switchover free) |
|
Operation method |
Windows operation |
|
Resolution |
1/100,000 |
|
Accuracy |
≤0.5% |
|
Testing speed |
1~500mm/min |
|
Stroke |
400,500,600mm(Height can be customed) |
|
Test width |
40cm(can be changed by customer needs) |
|
Test space |
(L×W×H)40×40×70cm |
|
Motor |
Panasonic servo motor |
|
Kind of drive |
high-precision ball screw |
|
Dimension |
(W×D×H)1200×600×1500mm |
|
Weight |
200kg |
|
Power |
1φ,220V/50Hz |
|
Rate of work |
0.4KW(depend on motor model) |
|
Clamp |
customize by customer needs(tensile and compressive clamp) |
Temperature control system:
High Low Temperature Tension Testing Machine
