Home > Products > SFP Optical Transceiver > Single fiber LC SFP Fiber Transceiver 1310nm / 1490nm Fibre Channel Transceiver

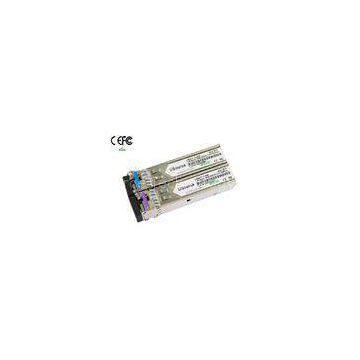

Single fiber LC SFP Fiber Transceiver 1310nm / 1490nm Fibre Channel Transceiver
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
1000 BASE -T SFP Copper Transceiver RJ45 UTP 1.25Gbs Media SFP Fiber Module
-
GPON Small Form - Factor Pluggable Transceiver 2.5 Gbps Fiber Optical Module
-
1.25 Gbps BIDI SFP Optical Transceiver 20km Single fiber LC , SFP Optical Module
-
3.125 Gbps Sfp Transceiver Modules 70KM Distance Single Fiber Copper SFP Module
-
Video 3G SFP Optical Transceiver HD-SDI SMPTE , Ethernet SFP Module
-
10GBASE-SR 10G SFP+ Optical Transceiver 850nm Fiber Optical Module
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
Single fiber LC SFP Fiber Transceiver 1310nm / 1490nm Fibre Channel Transceiver?
Part numbers
|
P/N |
Data Rate |
Wavelength |
Connector |
Distance |
|
UBSFP-1LR35 |
1.25Gbps |
1310Tx/1550Rx |
LC |
20km |
|
UBSFP-1LR53 |
1.25Gbps |
1550Tx/1310Rx |
LC |
20km |
|
UBSFP-1LR35-SC |
1.25Gbps |
1310Tx/1550Rx |
SC |
20km |
|
UBSFP-1LR53-SC |
1.25Gbps |
1550Tx/1310Rx |
SC |
20km |
|
UBSFP-1LR34 |
1.25Gbps |
1310Tx/1490Rx |
LC |
20km |
|
UBSFP-1LR43 |
1.25Gbps |
1490Tx/1310Rx |
LC |
20km |
|
UBSFP-1LR34-SC |
1.25Gbps |
1310Tx/1490Rx |
SC |
20km |
|
UBSFP-1LR43-SC |
1.25Gbps |
1490Tx/1310Rx |
SC |
20km |
Features????????????????????????????????????????????
Up to 1.25Gbps data links 1310nm/1550nm wavelength laser or 1310/1490nm Hot-Pluggable Single LC connector or SC Up to 20 km on 9/125μm SMF Monitoring Interface Compliant with SFF-8472 Compliant to IEEE 802.3Z Gigabit Ethernet & SFP MSA Manufactured in an ISO 9001 compliant facility Operating temperature range: 0°C to 70°C ??? ROHS-6 CompliantSPEC
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
Transmitter Section: |
|||||
|
Center Wavelength |
λc 1310 |
1290 |
1310 |
1330 |
nm |
|
λc 1550 |
1530 |
1550 |
1570 |
nm |
|
|
λc 1490 |
1470 |
1490 |
1510 |
nm |
|
|
Spectral Width |
σ |
1 |
nm |
||
|
Sidemode Supression ratio |
SSRmin |
30 |
dB |
||
|
Optical Output Power |
Pout |
-8 |
-3 |
dBm |
|
|
Extinction Ratio |
ER |
9 |
dB |
||
|
Optical Rise/Fall Time |
tr / tf |
260 |
ps |
||
|
Relative Intensity Noise |
RIN |
-120 |
dB/Hz |
||
|
Total Jitter Contribution |
TX Δ TJ |
0.284 |
UI |
||
|
Receiver Section: |
|||||
|
Optical Input Wavelength |
λc 1550 |
1530 |
1550 |
1570 |
nm |
|
λc 1310 |
1290 |
1310 |
1330 |
nm |
