Automated Guided Vehicle Laser Guided Robot

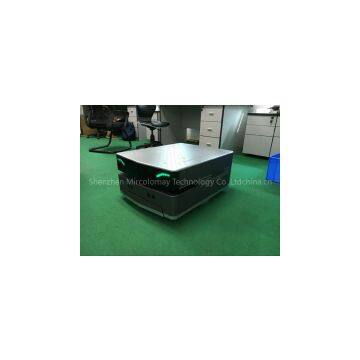

DZ-80 trackless navigation is the first trackless navigation and second-time expansion available mobile robot in China,it is aimed at factory,logistics and such transportation fields.Developed by Mircolomay technology company,it is also a complete autonomous mobile intelligent wheeled robot,it recognizes the position of pathway,elevator and room,creates virtual electric map and determines route,meanwhile avoids obstacles automatically.During operation,operators can choose destinations or routes by selecting manually on the side control panel of AGV.It is easy to operate without training,it doesn’t need any outside equipment either.Its adopting windows 10 interactive system,targeted open port and third-party supportive make it more convenient for second-time development.Its carrying weight can reach to 200kg, fastest speed to 150m/min,highest localization precision 5mm. At the same time, it offers plenty of choices,such as voice input,voice recognition,gesture control,remote calling,cross-building transfer,long-distance control and such humanized functions.

Specification

Leading method:laser navigation (trackless navigation)

Driving method:integrated(one-piece)differential drive

Carrying weight:200kg

Length*width*height:750mm*560mm*340mm(customizable)

Moving speed:150m/min(changeable randomly)

Minimum turning radius:0mm (fixed turning)

Breaking precision:±5mm

Uninterrupted working time: more than 32 hours(automated charging )

Security feature:mechanical anti-collision+photoelectric anti-collision, obstacle sensor,emergency switch(automated turning and path-finding)

Key words: automated guided vehicle, laser navigation ,service robot, intelligent robot
