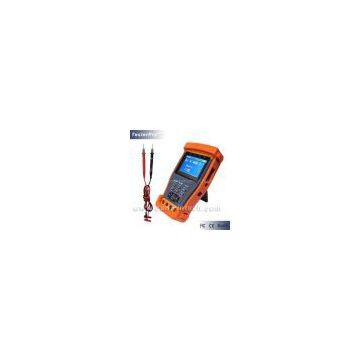

cctv tester/cctv monitor /camera tester

CCTV tester/PTZ tester/high speed dome tester/CCTV security tester

CCTV tester Application:
1.CCTV system installation and maintenance
2.Dome camera and All in one camera testing
3.The CCTV transmitting channel testing
4.PTZ controller

Features

        1. 3.5"TFT-LCD , 960(H)×240(V)resolution.

        2. Video Level testing, video signals measured in IRE or mV

        3. DC12V 1A power output for camera

        4.  Audio input testing

        5. Digital multimeter, voltage, current, resistance and capacitance can be tested, continuity testing, diode testing.

         6.  PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position

         7.  PTZ continuing rotate test

         8.Video displaying. Automatically adapts and displays the video format of NTSC/PAL.

LCD Brightness/Contrast/Color Saturation are adjustable.

        9. Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven-system colorful imagines)

        10. Data analyst. Captures and analyzes RS485 controlling data to help the technician to find out the problem.

        11. Cable testing. It is powerful in testing LAN cable, measuring the connecting status ,displaying the sequence of connection and the NO. of the LAN cable.

        12. Multi-interface and Multi-baud rate. Support RS232 ,RS485 and RS422 interface; baud rate ranging from 150, 600 to 19200bps.

       13.  Multi-protocol. Supports more than twenty PTZ protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.

       14.  PTZ address scanning, search up the ID of PTZ camera.

       15. Lithium Ion Polymer Battery (3.7V DC3000mAh). The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 12 hours for normal use after charging for 4 hours.

STest-894 kits:

STest-894 side view:

Specification:
