50KVA 50Hz MK9 Cigarette Making Machine AC Servo Driving System
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
MK9 Filter Cigarette Making Machine AutomaticAir Pressure Lower Noise
-
AutomaticCigarette Making Machine MK9 Double Knife Single Cutting
-
Supermatic Cigarette Making Machine MK9 5000 Cigarette Per Minute
-
BOPP Film Recycling Cigarette Materials Transparent Anti Faking For Box
-
HLP Cigarette Machine Parts Pressed Roll for Cardboard Packet
-
High Frequency Cigarette Machine Parts HLP Left Middle Steel Guide Rail
Product Details
| Brand Name | YUANYI | Place of Origin | China | |
Product Description
Certification:CE
50KVA 50Hz MK9 Cigarette Making Machine AC Servo Driving System
Highlights
1. The cigarette cutting system uses the double-knife single-cutting system with lower-rise temperature and lower noise. This gives the very good quality of the cigarette cut.
2. The complete suction system and high air pressure system .
3. The hopper system adopts AC servo motor to directly drive the tobacco cutting system. The timing belts are used instead of the gears, so the even tobacco-feeding is greatly improved and the maintenance cost is reduced as well.
4. Control center: it adopts the SIEMENS PLC S7-300 series.
5. Man-machine interface: The SIEMENS touch screen provides friendly man-machine interface, which displays the machine status and production data precisely. It is also convenient to modify the system parameter and check out the failure.?
6. It adopts AC servo driving system that simplifies the mechanical structures and reduces the failure and maintenance cost, and improves the transmission precision.
7. Weight controller: the microwave weight control system is adopted to avoid any harm to people.
Parameters
|
?Output |
?5000cig/min?(Normal?Size) ?3500cig/min?(super?slim/Nano) |
|
?Frequency |
?50Hz |
|
?Total?power |
?50KVA |
|
?Cigarette?parameter |
?Outside?dimensions |
|
?Filter-cigarette?length |
?65?～110±?0.5?mm |
|
?Cigarette?maker |
?3630×?1270?×?1870mm |
|
?Tobacco?rod?length |
?55?～90?mm |
|
?Plug?assembler |
?3340×1340×?1820mm |
|
?Cigarette?diameter |
?φ?5.4?～φ?9.0?mm |
|
?Tray?Filler |
?2350×2400×?2100mm |
|
?Power?supply |
?380V?±?10%(3phases) |
|
?Total?weight |
?8600kg |
Making?Process?Requirements
|
1.?Ambient?conditions |
|
|
Temperature |
20℃--30℃ |
|
Relative?humidity |
62％--68％ |
|
2.?Paper?bobbin |
|
|
Tensile?strength |
≥0.85KN/m |
|
Extensibility |
＞1.6％ |
|
Humidity |
6％±1.5％ |
|
Joint?number |
＜1/1000?m |
|
3.?Width |
48±0.3?mm |
|
Thickness |
0.04mm～0.05?mm |
|
4.?Cut?tobacco |
|
|
Grade |
A |
|
Humidity |
12.5％±0.5％ |
|
5.?Compress?air |
5.5bar |
|
6.?Viscosity?of?VPA |
|
|
For?the?maker |
2500mPa.s-5000mPa.s |
|
For?the?assembler |
5000mPa.s-10000mPa.s |

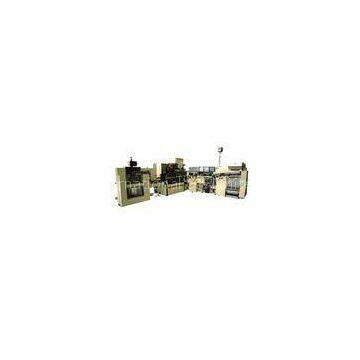

Picture?
