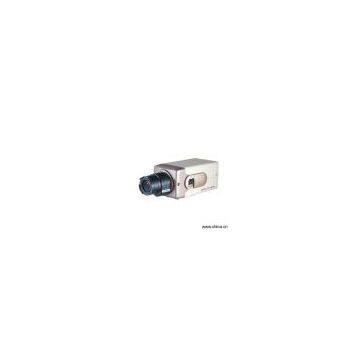

Sell Super Wide Dynamic CCD Box Camera

Model No.:VG-Q339HD
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:The super wide dynamic camera have adopted the patent DPS (Digital Pixel System) technology, which provides a wider dynamic range than conventional WDR camera. As the wide dynamic sensor and DPS chipset can adjust the lightness of each pixel, the camera capture sharp and crisp images not only in the foreground but also in the light background. This series of products offer high resolution (horizontal 540 TVL equivalent) and clear image for recording. The imaging system, multi-sampling every pixel in a single capture frame, determines the optimal time to sample and store the pixel information before the pixel is saturated. The dynamic range: 101dB typical, maximum 120dB. With the convenient OSD operation and multi-language platform, the following setting can be adjusted: wide dynamic range, OSD mode, brightness/sharpness, low light mode, video format, auto-iris lens, automatic white balance (AWB/indoor/outdoor), automatic gain control, B/W mode and mirror, etc. VG-Q339HD super wide dynamic Model: VG-Q339HD 1) Image sensor: 1/3" DTS technologies (D1500R)/GMY 2) Signal system: PAL/NTSC 3) CCD total pixels: (H) 742 x (V) 554 4) Effective pixels: (H) 720 x (V) 540 5) Resolution: horizontal: 540 TVL, vertical: 400TVL 6) Dynamic range: 102dB typical, max. 120dB 7) White balance: ATW / ATW WIDE/AWB/MANUA 8) Scan system: progressive scan 9) Sync system: internal (DC12V) / line lock (AC 24V) 10) Min. illumination: 0. 8lux/F1.2 11) Electronic shutter: 1/60-1/100000S (PAL); 1/50-1/100000S (NTSC) 12) S/N ration: above 50dB (AGC off) 13) Lens: C/CS mount 14) Video output: 1. 0Vp-p, 75 ohms (BNC) 15) Supply voltage: DC12V/AC24V 16) Consume electricity: DC12V: 30mA (max.), AC 24V: 4.8W 17) Operation temperature: -20-50
