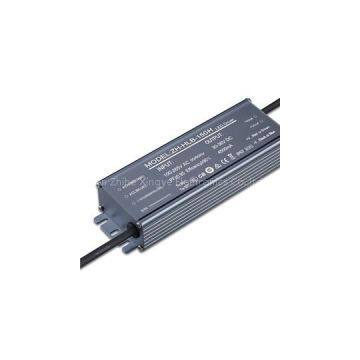

150W LED Street Light Driver, IP67, Waterproof, 1-10V Dimmable, PWM CC Model

Place of Origin	China

Product Details? ? Key Specifications/Special Features:Features:* Wide range of AC input voltage: 85VAC~305VAC* Conforming ERP2016 with standby power consumption: <0.5W* Active power factor correction* Protections against: short circuit/over current/over voltage/over load/over temperature* IP67 design for outdoor application* Meets 4KV surge immunity (IEC6100-4-5)* Standardized module,Website: www.ur-brand.net www.ur-brand.net www.ur-brand.nethttp://www.zh-leddriver.com, easy to install and maintain3 years warranty* LED load less than 100%*?D type: 1～10VDC control signal*?P type: PWM control signal (internal or external)*?R type: 10KΩ～100KΩ resistance dimmer; (auto-cutoff when R<4KΩ)*?T type: time control dimming*?Current can be regulated externallyElectrical specifications:Input voltage range: 85 - 305V ACEfficiency: 92% - 93%THD: <10%Power factor: >0.96MTBF: up to 50,000 hours lifetime, TC 80℃Environmental parameterHumidity: 10 - 90%RHOperation temperature: -40 - 60℃Storage temperature: -40 - 85℃Safety approval:Safety approval: EN61347, UL8750, GB19510EMC standards: EN55015, EN61347, EN61000, GB17743, GB17625Dimensions: 216mm (L);? 72mm (W);? 40mm (H);? weight: 1200gApplications:LED street lamp, high bay, tunnel lamp, flood light, landscape lampSeriesModel No.?Output VoltageOutput CurrentCurrent RangeEFF.RippleC.C ModelUEL150B-S036417-A1Z22-36V4.17A±3%92.5%2%V0C.C ModelUE150B-S048313-A1Z29-48V3.13A±3%92.5%2%V0C.C ModelUEL150B-S107140-A1Z65-107V1.4A±3%92.5%2%V0C.C ModelUEL150B-S143105-A1Z86-143V1.05A±3%92.5%2%V0C.C ModelUEL150B-S214070-A1Z129-214V0.7A±3%92.5%2%V0Primary Competitive Advantages:Brand-name PartsGuarantee/WarrantyInternational ApprovalsProduct PerformanceQuality ApprovalsReputationServiceMain Export Markets:AsiaAustralasiaCentral/South AmericaEastern EuropeMid East/AfricaNorth AmericaWestern EuropePayment Details:Payment Terms:Telegraphic Transfer (TT,T/T)Minimum Order:100 ? ? ? ?SetsDelivery Details: ? FOB Port:ShenZhenLead Time: 3? ? ? ? - ? ? ? ? ?7 ? ? ? ?days Download more information about this productAny third-party trademarks or images shown here are for reference purposes only. We are not authorized to sell any items bearing such trademarks.Our company:
