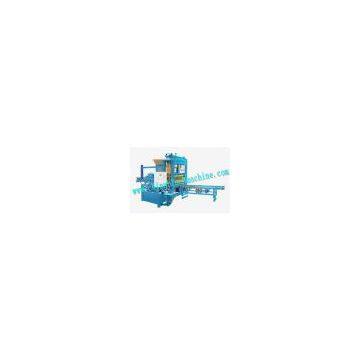

Auto block making machine/brick machinery/paving brick machine

QT4-15B Auto block making machine/brick machinery/paving brick machine detail introduce

1. Main technical parameters
Dimension: 2440×2000×2600mm
Host machine power: 27KW
Moulding area: 400×800mm
Vibration force: 40KN
Moulding period: 15-20S
Capacity: 70.25KVA
Pallet Size: 1010×550×20/25mm
Mixer model: JS500
Total Weight: 7.6T
Water Consumption: 5T/every day
Voltage:220/240/380/440V
Theoretical workshop area : 150m2 , need about 6-7workers .the office,curing area and stacking area to arrange according your fact status.

2.Production capacity
Size (LxWxH)                 Pcs/Mould            Pcs/ Hr              Pcs/ 8 Hr                  m3/year
400X100X200                      8                   1200-1920        9600-15360           27648-36864
400X150X200                      6                   900-1440          7200-11520           31104-41472
400X200X200                      4                   600-960             4800-7680             27648-36864
400X250X200                      3                     450-720           3600-5760             25920-34560
Paver:200X100X60            16                     1920                   15360
Paver:200X163X60             8                      1200                    9600
The QT4-15B Block Machine is excellent in performance, high in efficiency, and lower in energy consumption. Since putting into the market, good economic profits and social benefits have been achieved.

3.Our products have below advantages:
(1)Using Japan Mitsubishi PLC, Germany Siemens' motor and high-strength steel and special welding process, our machine is of high quality and long useful life .
(2)With the full use of super-special steel, chrome-plated surface, the column-oriented has a good resistance and wear resistance.
(3)We have exported many machines to Pakistan, Oman & Russia, etc. And our machine were well-recognized by most of our clients.

4.Automatic Block Machine Main Technical Features:
1) Uses Germany Siemens PLC control system and Siemens Touch Screen.
    A. Visualization screen with easy operation
    B. Is able to set up, update and amend the production perimeters, to maximize the production output;
    C. Dynamic display of the systems status, automatic trouble shooting and warning notice;
    D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes;
    E. Is able to troubleshoot the machinery via teleservice
2) Uses high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; uses integrated high-pressure and soft oil pipes, with easy installation;
3) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;
4) Integrated structure of vibrating and moulding platforms, which reduces the weight of the machine, and improves the vibrating efficiency;
5) Uses one single motor to drive the vibrator via transmission shaft, avoiding the inconsistency of double motors, so as to save the power;
6) Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise;
7) High-precision guide bearings are used to assure the precise movement between the tamper head and the mould;
8) Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant.
