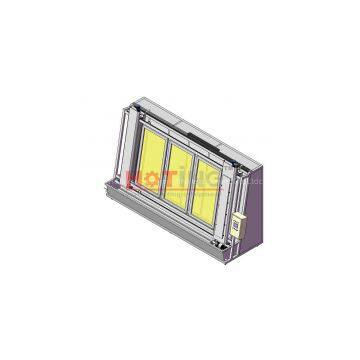

Automatic Screen Washout Booth for Large Size Screen
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Hoting | Place of Origin | China | |
| Model Number | WAS-1225 |
Product Description
Application:
This semi automatic series suitable for screen developing, degreasing and decoating.
Feature:
(1) Back-front nozzle design, double-sided synchronous cleaning screen.
(2) Main construction stainless steel, non-corrosive.
(3) Screen size in the maximum range can be freely adjustable, we can make based on your largest screen size.
(4) Cleaning left-right stroke can be freely adjusted.
(5) HMI operation system to facilitate multiple settings.
(6) Freely set pressure, cleaning times, speed and other relevant parameters.
(7) Equipped with cleaning brush roller and water recycling system.
(8) Equipped with seperate clean water washing system and air blower system.
(9) Equipped with filtration system prevent cleaning nozzles blocked.
(10) Several small screens can be washout at the same time.
(11) Water purification system is optional.
Parameter:
Model WAS-1225
Maximum frame size 1200*2450mm
Minimum frame size 400*400mm
Power 380V
Dimension 2042*900*3550mm
Function Screen developing, decreasing and decoating
Nozzle Japan import stainless steel nozzle
Nozzle moving Cross and up-down
Material 304 stainless steel + framework spray paint
Internal piping material corrosion resistance and anti-rust
Air flow 200m3/h
PLC Delta
Water pump Lift 65m Pressure:0-5 Kg/cm2 Motor:5kw
★ Can be make for customized frame size and model
