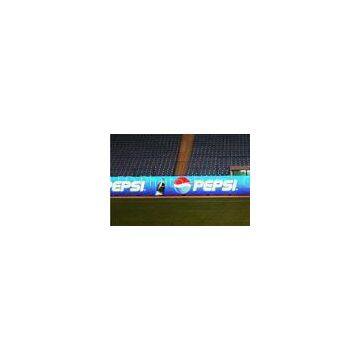

Waterproof Static Stadium Perimeter LED Display With Big Viewing Angle
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Big Static Waterproof P16 LED Display , 8000 Nit Outdoor LED Video Wall
-
6500cd/sqm Front Service Double Sided P10 Outdoor Full Color LED Display With CE , RoHS
-
1/4 Scan Outdoor Full Color P10 RGB LED Display Module 16 x 16 dots
-
Outside SMD RGB P6.67 640x640mm LED Display With Die-Casting Cabinet For Advertising
-
1/16scan 256mm x 128mm, HD 4mm Indoor SMD2121 Full Color Stage LED Display Screen
-
P5 Commercial Rental LED Display , SMD 1 / 16 Scan LED Video Wall Rental
Product Details
Brand Name | SRYLED | Place of Origin | China | |
Model Number | SRY-OF-P16 |
Product Description
Certification:CE/ROHS
Waterproof Static Stadium Perimeter LED Display With Big Viewing Angle
?
Description:
?
1, Humanization Design
?
With special soft module mask and cabinet cover, it can protect the players from being hurt during the match.
?
2, Independent Ground Support Structure, More Stable than You Think
?
The angle of the ground support structure can be adjusted as you need, to suit the best viewing angle for audience and cameras.
?
3, Three-high Design and Excellent Visual Effect for Live Video
?
High refresh rate up to 4000Hz, no scanning line and color patch by HD camera;
?
High grey scale up to 16 bit, making the image vivid and sharp;
?
High brightness up to 8000 nits, making the image clear enough even in the sun directly.
?
4, High IP Rating Suited for Outdoor Use
?
High?IP Rating Suited for Outdoor Use.
?
It can both be used indoors and outdoors, as it is equipped with the latest outdoor SMD and DIP technology. And thanks to its full IP65 rating - it is completely waterproof.?
?
The professional aviation connectors enable multiple plug and unplug, and it’s full waterproof. It ensures the stable and reliable of the screen especially in some important occasions.
?
Features:
?
1, Automatic?backup?system
Our?LED?Displays?could?utilize?two?computers?to?ensure?interruption?free?display?of?images?and?videos.?
For?instance,?if?one?unit?was?to?shutdown?due?to?technical?issues,?the?other?unit?acts?as?a?backup?
solution?automatically.
?
?
2, Convenient?to?install?and?disassemble
Our?Sport?LED?Display?cabinets?feature?simple?designs,?making?them?easy-to-install?and?disassemble.?The?cabinets?include?interlocks,?as?well?as?external?signal?and?power?plugs.
3, ?Adjustable?inclination?angle
Generally,?the?LED?perimeter?displays?are?placed?vertically?and?the?inclination?angle?is?adjustable?for?the?best?possible?viewing?and?cameras?shooting?angles.
?
?
Specification:
Pixel Pitch | 16mm |
Pixel Density | 3906dots/sqm |
Color Configuration | 1R1G1B |
LED Package | DIP346 |
Module Size | 256mm x 256mm |
Module Resolution | 16dots x 16dots |
Cabinet Size | 1024mm x 1024mm |
Drive Mode | Static, Constant Current |
Brightness | >8000cd/sqm |
Viewing Distance | 16m-160m |
Viewing Angle | H: 120°; V:120° |
Interface | Hub75 |
Refresh Rate | 4000HZ |
Frame Rate | 120frame/sec |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10%, ?50HZ |
Max Power Consumption | 1000W/sqm |
Ave. Power Consumption | 400W/sqm |
Storage Temperature | -40℃~+85℃ |
Working Temperature | -20℃~+65℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof | IP65 |
Operating Humidity | 10%~95% |
Control Method | Synchronous, LINSN, NOVA |
PC Display Resolution | 1280x1024 |
Control PC | With DVI Graphic card |
Operating System | Win 98, Win2000, XP, Win7, Win8 etc |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
?
Applications:
?
P16 stadium led display scoreboard is perfect for?various sports stadium, such as swimming pool, basketball court, football field, hockey field, rugby filed?etc.
?
Competitive Advantage:
?
1) New soft module mask and cabinet protection pad.
2) ?2 years warranty, more than 10 years life.
3) ?Within 7-15 days, the led display can be sent to you after your payment. Fast delivery time ? ? ? ?
?
4) ?If necessary, our engineers can be sent to your country to assist you to solve all problem.
5)? 1% spare parts.( such as led di
