Home > Products > Pipe fittings > Forged 3000lb stainless steel screw eblow 90 deg

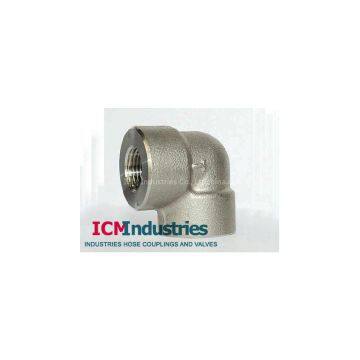

Forged 3000lb stainless steel screw eblow 90 deg
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | ICM | Place of Origin | China | |
| Model Number | ICM |
Product Description
Forged Carbon Steel PIPE FITTINGS , StainlessSteel Pipe Fittings, Socket Weld Forged Pipe Fittings, Threaded Forged SteelPipe Fittings
1.Type: UNION, 90° EBLOW, 45° ELBOW, TEE,CAP, COUPLING, NIPPLE,BUSHING, PLUG, HALF-THREAD SHORT PIPE
Ends: SOCKET WELD / THREADED NPT
2. Connection: Socket Welded, Threaded
3. Size Range: 1/8" - 4"(6mm -100mm)
4. Pressure Rating:
Threaded Forged Pipe Fittings: 2000LBS,3000LBS, 6000LBS
Socket welding Wog 3000, 6000, 9000 LBS
5. Specifications:
1) Standard: ASME B 16.11, MSS-SP-79 839597
2) Material: F304, F304L, F316, F316L,F304H, F316H, F317L, F321, F11, F22, F91,ASTM A105, ASTM A18
3) Size of raw material: Dia. 19-85mm roundbar.
6. Technology: Forged
7. Packing: Wooden cases or wooden palletor as per customers requirement
8. Delivery Time: 25 days after orderconformed
9. Payment: By T/T or L/C
10. Applications range: Petroleum,chemical, machinery, electric power, shipbuilding,
Papermaking, construction etc
We aslo sell industrial hose couplings(Camlock, Sotrz, Bauer Guillenmincouplings ), stainless pipe fittings, valves,flanges, sanitary fittings and valves and so on.
