Industrial Motor

Place of Origin	China

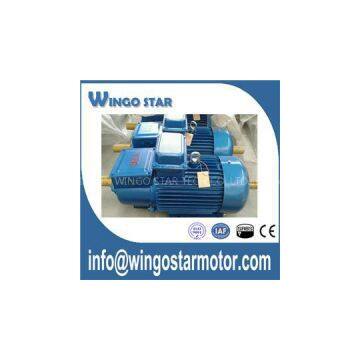

YZR Series motors for crane and metallurgical uses,Website: , featured with large overload capacity and adequate mechanical strength, are specially suitable for driving various types of crane and metallurgical machineries or other similar equipment.Featurea: ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?large overload capacithigh mechanical strengthadjustable braking torquecompact structureconvinient to use and maintainUse Conditions: ? ? ? ? ? ? ??Environment temperature: ≤40°C(general environment) ?60°C(metallurgical environment)Elevation: ≤1000mMechanical vibration and shock frequentlyStarting, braking(Electrical or mechanical) and running frequentlyDuty Types: ? ? ? ? ? ? ? ? ? ? ? ? ??There are seven types of duty type for these series motors, S2,S3,S4,S5,S6,S7,S8 and S9. The basic duty type is S340% (duty type is S3, cyclic duration factor is 40%, each cyclic is 10min). The following duty types are most useful to these series motors.1.Short-time duty type (S2)Operation of constant load during a given time, less than that required to reach thermal equilibrium, followed by a rest and de-energized period of sufficient duration to re-establish machine temperature within 2 deg K of the coolant.2. Intermittent periodic duty type (S3)A sequence of identical duty cycles, each including a period of operation at constant load and a rest and de-energized period but the operation period are so short that it is not sufficient for the machine to reach thermal equilibrium In this duty type, the cycle is such that the starting current does not significantly affect the temperature rise.3. Intermittent periodic duty type with starting (S4)A sequence of identical duty cycles, each including a significant period of starting, a period of operation of constant load and a rest and de-energized period, but the operation period are so short that it is not sufficient for the machine to reach thermal ?equilibrium.4. Intermittent periodic duty type with electric braking (S5)A sequence of identical duty cycles, each consisting of a period of starting, a period of operation at constant load and a rest and de-energized period, but the operation period are so short that it is not sufficient for the machine to reach thermal equilibrium.?5. The motor will operate satisfactorily under following conditions:(1) Ambient temperature not exceeding 40 (for crane uses) or 60 (for metallurgical uses).(2) Not above sea-level 1000m.(3) Frequent and significant mechanical vibration and shocks.(4) Frequent starting, braking (electrical or mechanical) or reversing.6. The rated frequency of the motor is 50Hz and rated voltage is 380V.7. Connection: The stator winding is connected in Y for 132kW and below and in for the rest. In Y with ? ? zero lead is also supplied.WorkshopPackaging & ShippingFAQQ: What is the payment terms?A: 30% T/T in advance, 70% before shipment, L/C at sight, Western Union or PaypelQ: What is your delivery time?A: Within 15-20 days after receiving deposit.?Q: Do you offer OEM service?A: Yes. We accept OEM service..?Q: Can we type our brand on it?A: Yes of course.Q: Where is your loading port ?A: Tianjin Xingang Port, ChinaQ: What is your production capacity?A: About 1000 PCS per day.Our Service1. Promote reply to your inquiry with 12 hours. Because we valuing every customer.2. We cooperate with customer to design and develop new product. Provide OEM.?3. After-sales warranty will be provided with 12 months.4. We will send instructions when you placed the offer.5. 25-30 days leading time.6. We’d like to assist you arranging delivery things, test things or others on your request.Why us?1. Our Manufacturer is the biggest in China2. Best price in China3. Manufacturing from 1958, and full of export experiences.4. We promise Guaranteed Quality?5. 100% tested for the quality prior to shipment6. Special motors can be designed according to customers' requirements7. Perfect performance, low noise, slight vibration, reliable running, good appearance, small volume, light weight and easy maintenance.8. Water, dust and vermin resistant; Corrosion resistant;9. Reliable in country, city or factory environments10. Very low power consumption11. Superior life12. The standards conforms to the IEC international standard13. Sincere and Professional Service14. Our principle is "Guaranteed Quality, High Efficiency, Environmental and Considerate Service"; our purpose is "Win Win".
