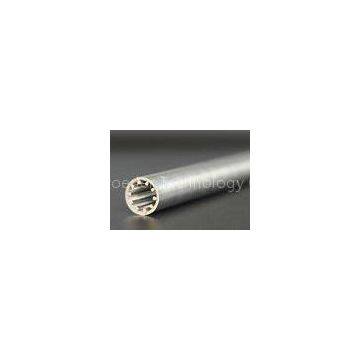

OD37 mm Transverse Looped Wedge Wire Filter 0.1mm Filtering Slot For Filtration System
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
SS304 Stainless Stee Wire Mesh Cylinder 0.1mm Slot Easy Cleaning Low Pressure Drop
-
0.1mm Slot Rotary Wire Mesh Cylinder 76mm Diameter For Wastewater Treatment
-
200mm Heat Resistance Wire Mesh Cylinder Low Maintenance From Inside To Outside
-
High - Flow Custom Stainless Steel Well Screen 2500 mm 750 Micron 316 L
-
316L 200 micron Wedge Wire Screen for Liquid / Solid Separation Filtering
-
42 mm Round Wedge Wire Screen 12SR 1mm 2mm For Water Well Drilling
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Delivery Time:3-5 days
Certification:CE,FCC,MSDS
OD37 mm Transverse Looped Wedge Wire Filter 0.1mm Filtering Slot For Filtration System
Brief introduction
We,SLOT-CHINA are dedicatedly engaged in offering a commendable range of Wedge Wire Filter. The Wedge Wire Screen are transverse looped welding on the support rods which are lengthways inside . The offered screen is broadly used in many industries for several purposes. Using premium quality raw material with the aid of the latest technology, the provided screen is manufactured under the guidance of skilled professionals at our production unit. Owing to its remarkable features like durability and easy installation, this screen is highly acclaimed by our clients in the market.
Specification of filtration
Technical data for more available OD and filtering rate.
| (mm)TYPE | OD | ID | Support wire Number | Filter direction |
1 | SRD25.4 | 25.4 | 18.6 | 12 | FOTI |
2 | SRD 33 | 33 | 24 | 8 | FOTI |
3 | SRD 37 | 37 | 28 | 8 | FOTI |
4 | SRD 40 | 40 | 31 | 8/10 | FOTI/FITO |
5 | SRD 45 | 45 | 36 | 10/12 | FOTI/FITO |
6 | SRD 48 | 48 | 38 | 12 | FOTI/FITO |
7 | SRD 60 | 60 | 51 | 12 | FOTI/FITO |
8 | SRD 70 | 70 | 61 | 12/18 | FOTI/FITO |
9 | SRD 85 | 85 | 76 | 18 | FOTI/FITO |
10 | SRD 110 | 110 | 101 | 24 | FOTI/FITO |
11 | SRD120 | 120 | 111 | 24 | FOTI/FITO |
Remarks:
1. Make high precision wedge wire screen with different material according to user requirements.
2. high precision wedge wire screen\\' should be bigger than 0.020mm slot and less that 2500mm long.
