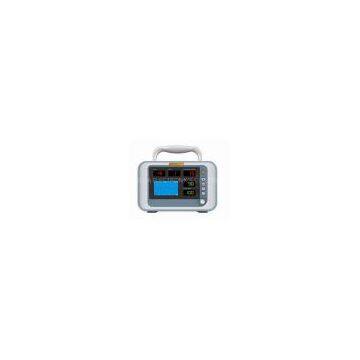

ETCO2+SPO2 Patient Monitor 3.5 Inch-RSD2001A

FOB Price

Negotiable / Pair

1 Pair(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China
Model Number	RSD2001A

Product Description

Name:ETCO2+SPO2 Patient Monitor 3.5 Inch

Item no:RSD2001A

Details:

RSD2001A is a Portable Patient Monitor that has abundant monitoring functions and is used for the clinical monitoring of adult, pediatric and neonate. In addition, the user may select the different parameter configuration according to different requirements.

RSD2001A (standard)can monitor vital signals correlating to SpO2 and CO2. It integrates parameter measuring modules and display in one device, featuring in compactness, lightweight and portability. Replaceable built-in battery facilitates transportation of patient. The LCD of high resolution and bright LED display provides clear view of 2 waveforms,SPO2,PR,EtCO2,InCO2,Respiration rate.

Specifications

Display

Messages:

2 Waveforms

2 indicator lights

2 Sound Mode corresponding Alarm Mode

Device:

1 dot matrix LCD size: 3.5", resolution: 256X120

5 digital LED windows

CO2

Method Infra-red Absorption Technique

Measuring mode Sidestream

Side-stream mode sampling gas flow rate

100, 150, 200 ml/Min (option)

Measuring range

CO₂ 0~99 mmHg

INSCO2 0-99 mmHg

AwRR 0~150 rpm

Resolution

CO₂ 1 mmHg

INSCO2 1mmHg

AwRR 1 rpm

Accuracy

CO₂

2 mmHg,0 ~ 40 mmHg

5% of reading,41 ~ 76 mmHg

10% of reading, 77 ~ 99 mmHg

AwRR 2 rpm

Actualization interval about 1 Sec.

Start-up Time: < 10 sec

Rise Time: 240 msec (10% to 90 %)

Delay Time: 1.12 seconds maximum with 7^| length, 0.055^|| ID.

Sampling line at 175 ml/min

Alarm range

CO₂0 ~ 99 mmHg

InsCO2 0 ~ 99 mmHg

AwRR 0 ~ 150 rpm

Suffocation Alarm Delay

AwRR 10 ~ 40 Sec

SpO2

Measuring Range 0 ~ 100 %

Alarm Range 0 ~ 100 %

Resolution 1 %

Accuracy 70% ~ 100% 2 %

0% ~ 69% unspecified

Actualization interval about 1Sec

Alarm Delay 10 Sec.

Pulse Rate

Measuring and Alarm Range

0~254bpm

Resolution 1bpm

Accuracy 2bpm

Alarm Delay 10 Sec.

Recall

Trend Recall

8 to 96hours all parameters result.

NIBP Measurement Recall

50 NIBP measurement data.

Signal Interface

Amplitude 1 V/mV

Accuracy < 5 %

Impedance 50

Signal Delay < 20 mS

Battery

Rechargeable 4.0 A/Hr 8.4V Li-ion battery

Operating time under the normal use and full charge greater than 4 hours

Operating time after the first alarm of low battery will be about 5 minutes

Maximum charging time is 4 hours

Environment

Temperature

Working 0 ~ 40 degrees

Transport and Storage -20 ~ 60 degrees

Humidity

Working 30% - 85 %

Transport and Storage 30% - 93 %(no coagulate)

Altitude

Working -500 to 4,600m

Transport and Storage -500 to 13,100m

Power Supply

100/250 VAC, 50/60 Hz (for adapter)

Pmax=30VA

Dissipation

Working Less than 3W

Power-off Less than 0.1W

Size and Weight

Size 318 x 152 x 264 mm

Weight 5.5 kg

Accessories

Standard:

Model number: RSD 2001A SPO2+ETCO2

1 main unit

1 SPO2 cable

10 ETCO2 tube

1 user manual

Optional:

Model number: RSD 2001B SPO2+NIBP

Model number: RSD 2001C ETCO2

Model number: RSD 2001D SPO2

Model number: RSD 2001E SPO2+NIBP+ETCO2

Printer
